Looking for an ST 2110 waveform monitor, a 4K waveform monitor, or an 8K waveform monitor?

Welcome to the PRISM family of waveform monitors, the only solution you need…

In the competitive media and entertainment industry, success relies on superior content and quality delivery. The PRISM family helps ensure both, through tools that meet the required diagnostic and analysis needs. Whether you need an instrument for engineering, the creative team, or both, PRISM delivers:

  • SD, HD, 1080P, 2K, 4K, 8K resolutions/formats. Learn more.
  • Four (4) simultaneous SDI inputs, up to 12G
  • Two (2) IP video ports up to 25G supporting ST 2110, ST 2022-7, ST 2022-6 and PTP
  • Audio Metering up to 32 channels/program
  • Dolby ED2/E/D/D+ audio via SDI and ST 2110-30/31
  • Objective HDR measurements with integrated HLG, PQ, Slog2/3, and Log-C gamma curves
  • Wide Color Gamut measurement and error detection for Rec.709, DCI-P3, and Rec.2020 color spaces

All in a compact package with no compromise on flexibility or performance.

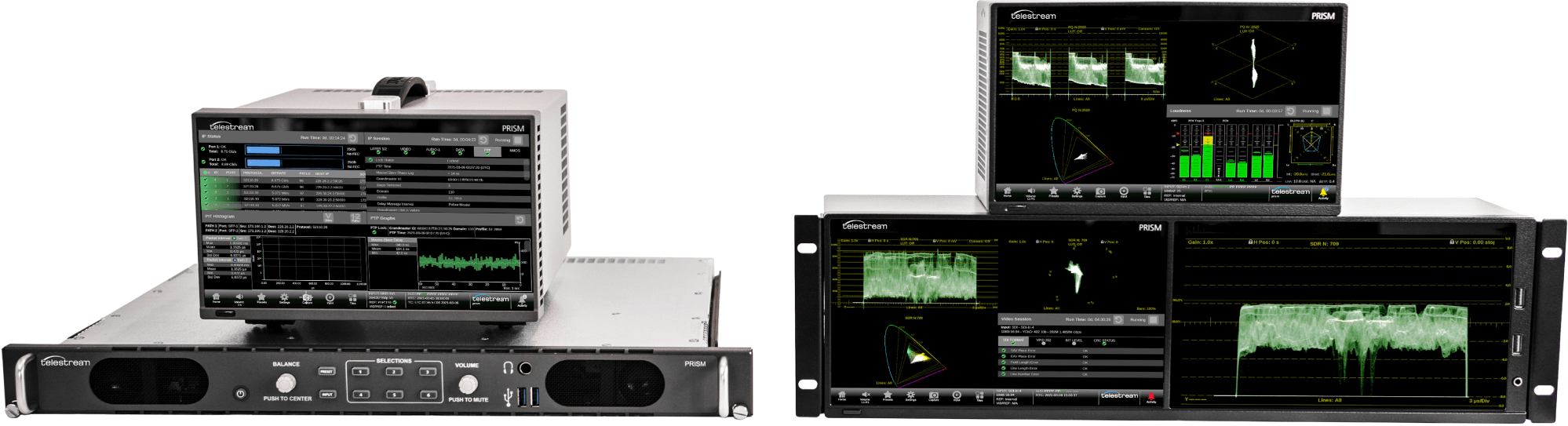

Which Form Factor Fits Your Application?

Simply select the form factor and connectivity you need.
The PRISM software does the rest.

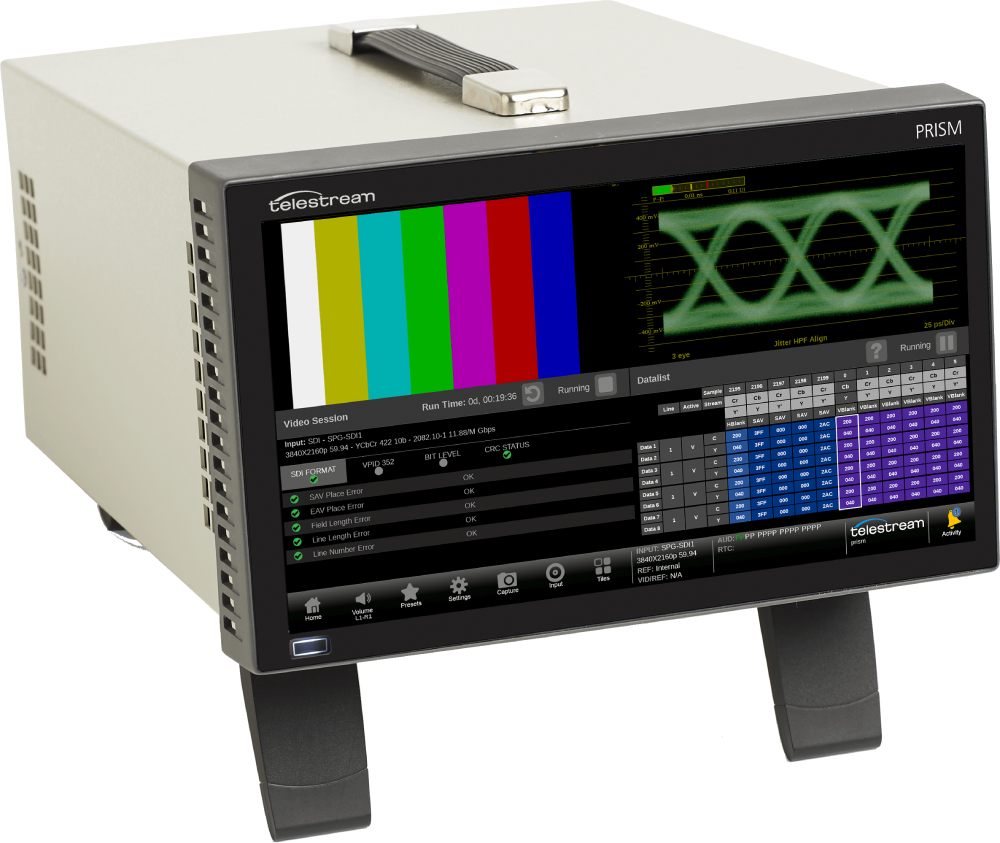

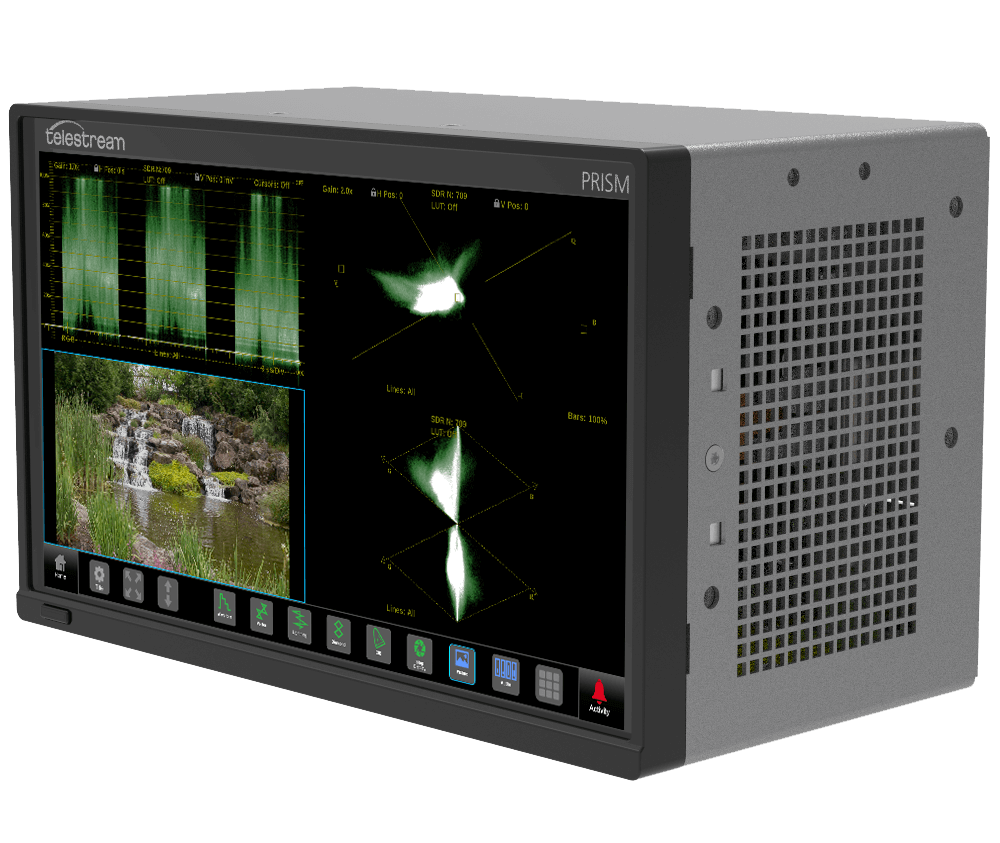

  • Integrated Touchscreen
  • 3RU height, Half Rack width, 5” depth
  • MPS-100 SDI connectivity
  • MPS-200 SDI and IP connectivity
  • MPS-300 SDI, IP connectivity with SDI Eye/Jitter measurements

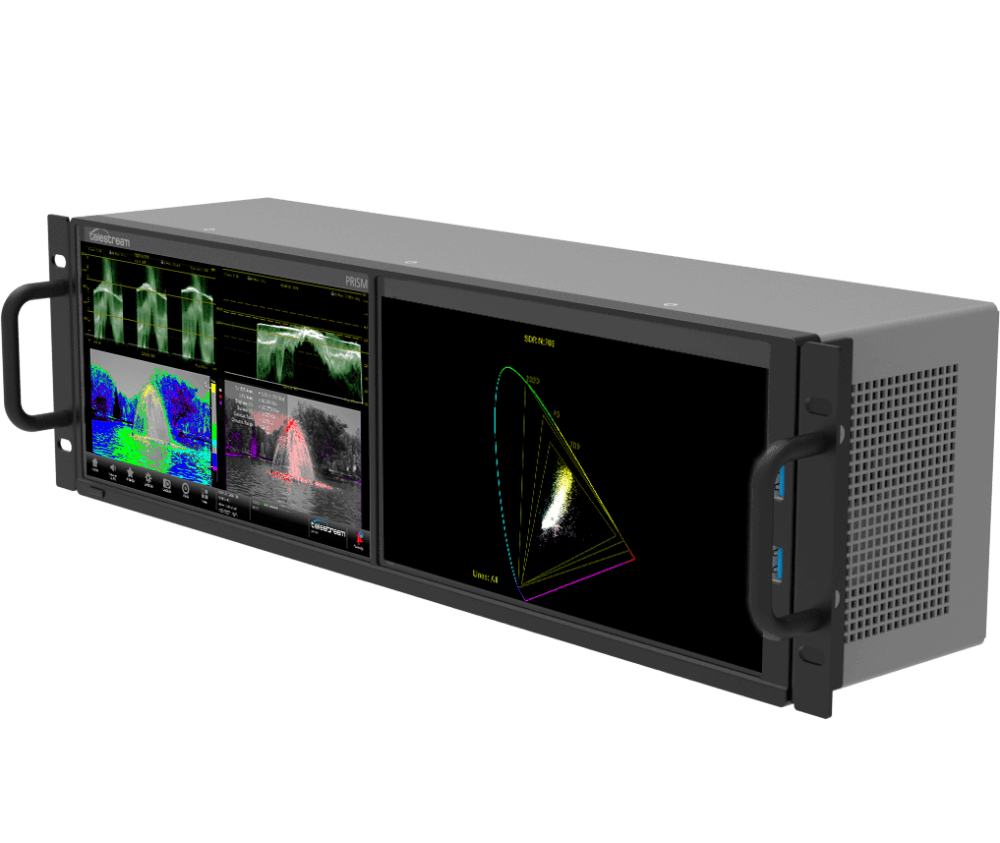

  • Dual Integrated Touchscreen
  • 3RU height, Full Rack width, 5” depth
  • MPD-100 SDI connectivity
  • MPD-200 SDI and IP connectivity
  • MPD-300 SDI, IP connectivity with SDI Eye/Jitter measurements


  • Purposely built for quiet workspace
  • SDI inputs with loop through
  • Two Display Ports are available to drive external PC displays

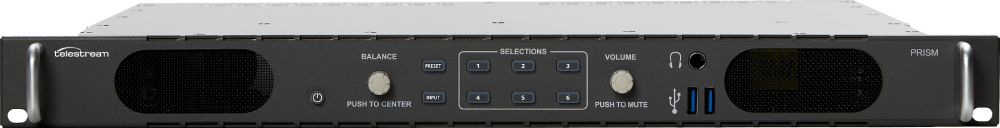

  • 1RU Full Rack width with 11” depth
  • MPP-100 SDI connectivity
  • MPP-200 SDI / IP connectivity, 8ch Analog Audio output
  • MPP-300 SDI / IP connectivity with SDI EYE/Jitter measurement, 8ch Analog Audio output

Standard Apps

The base model is equipped with a rich set of standard applications.

Click on an icon to find out more about the Apps.

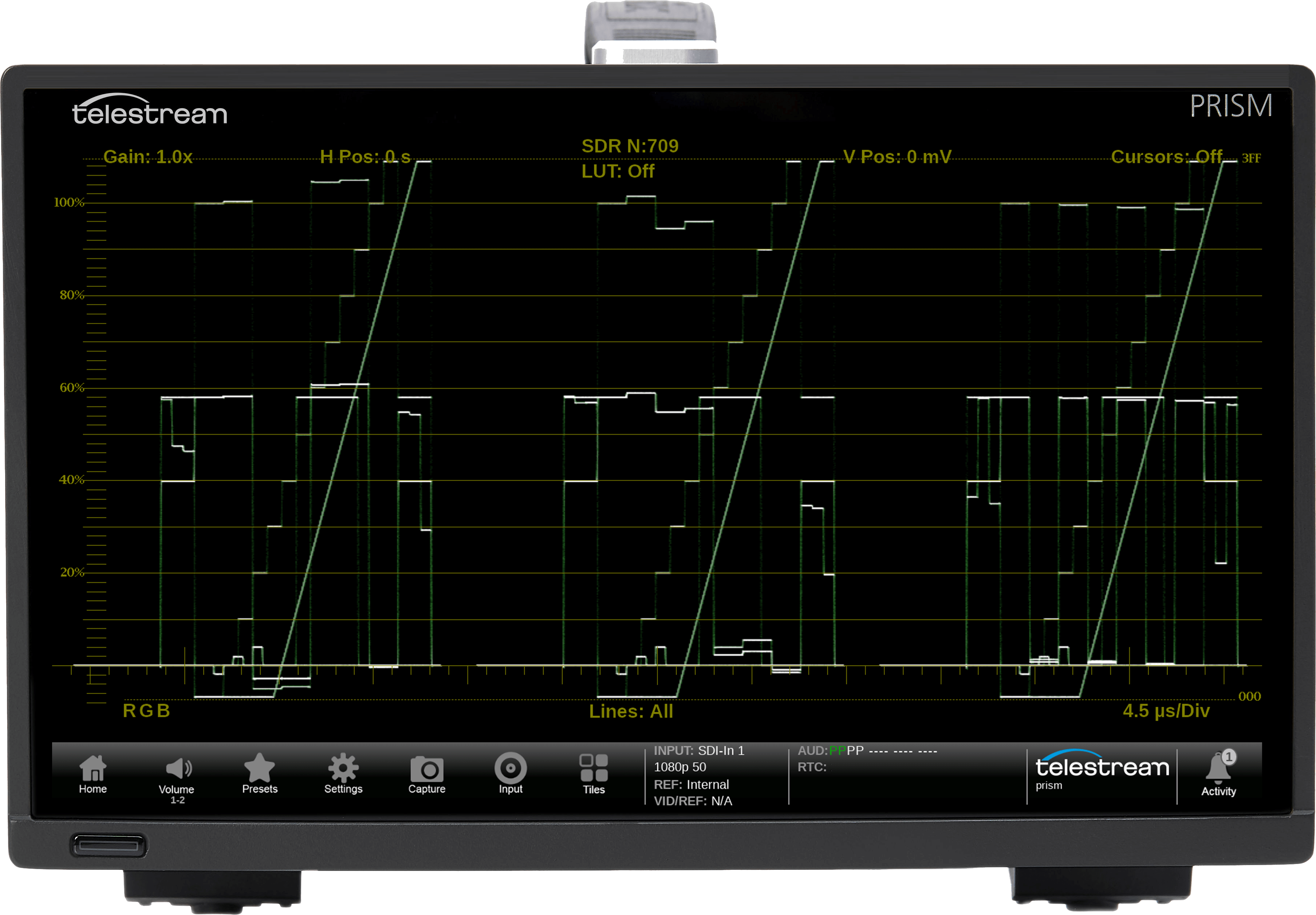

Waveform Display

Provides an array of configurations for various display of YPbPr, YRGB or RGB with a variety of Gain, Sweep, Mag and Line Select functions and the ability to add cursors for precise measurement within the trace.

Learn more

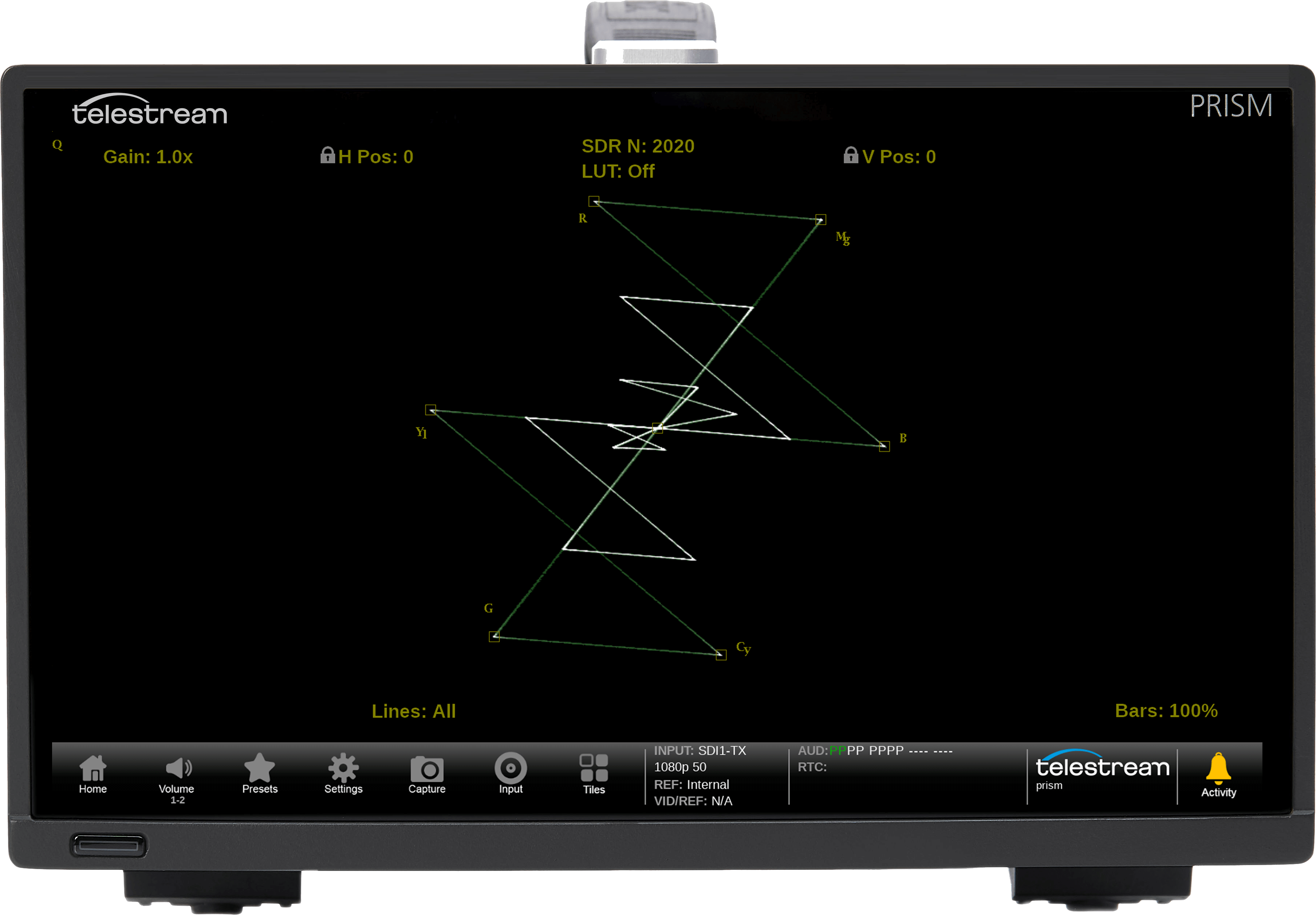

Vector Display

Allows the user to adjust the Saturation and Hue of the color components with adjustment of Gain, Line Select or bar format (100% / 75%).

Learn more

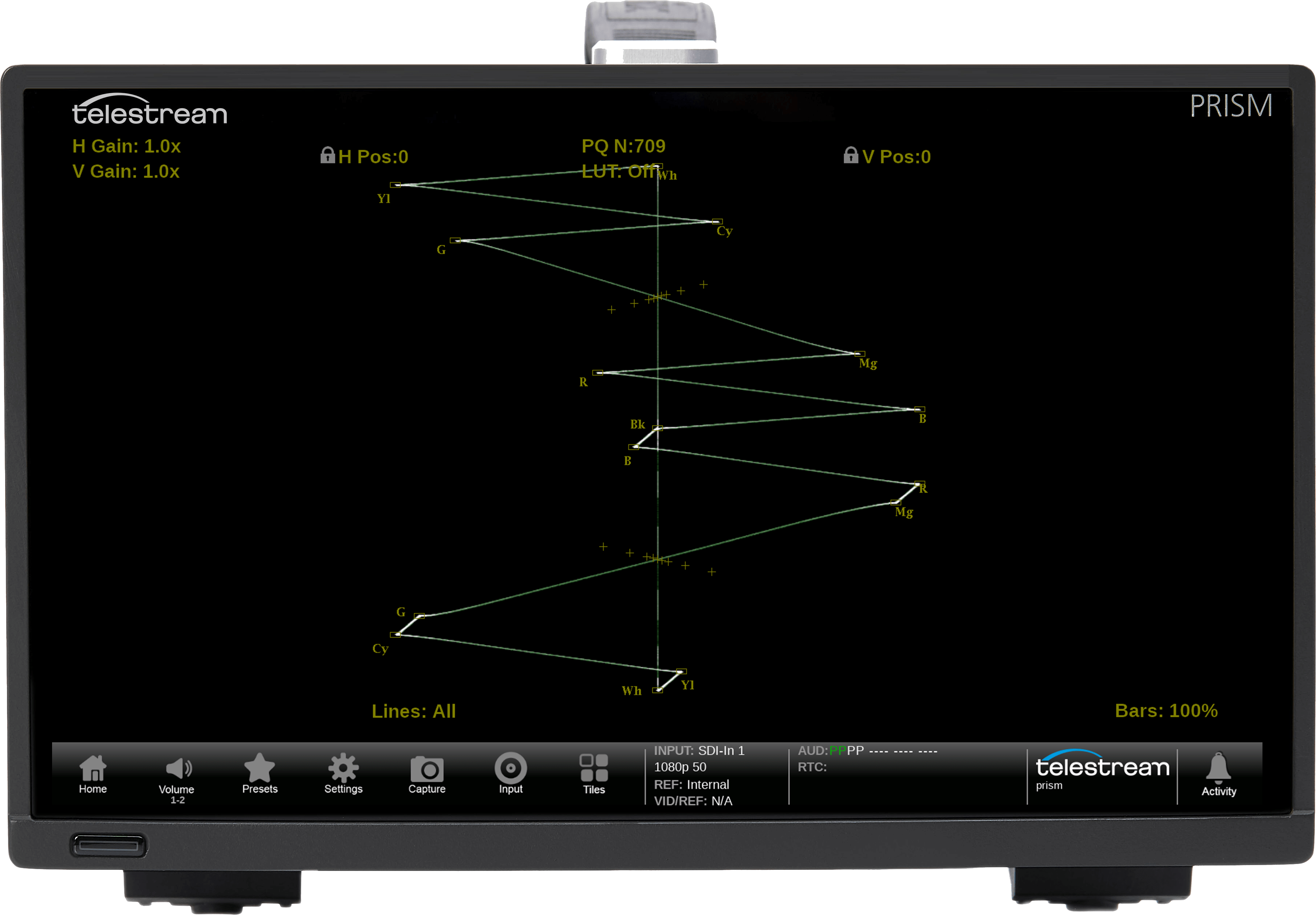

Lightning Display

An X-Y plot of Luma versus Pb in the upper trace and negative Luma versus Pr in the lower trace for easy identification of the component. Provides inter-channel timing of the YPbPr components and simple adjustment of the black level using Gain and MAG.

Learn more

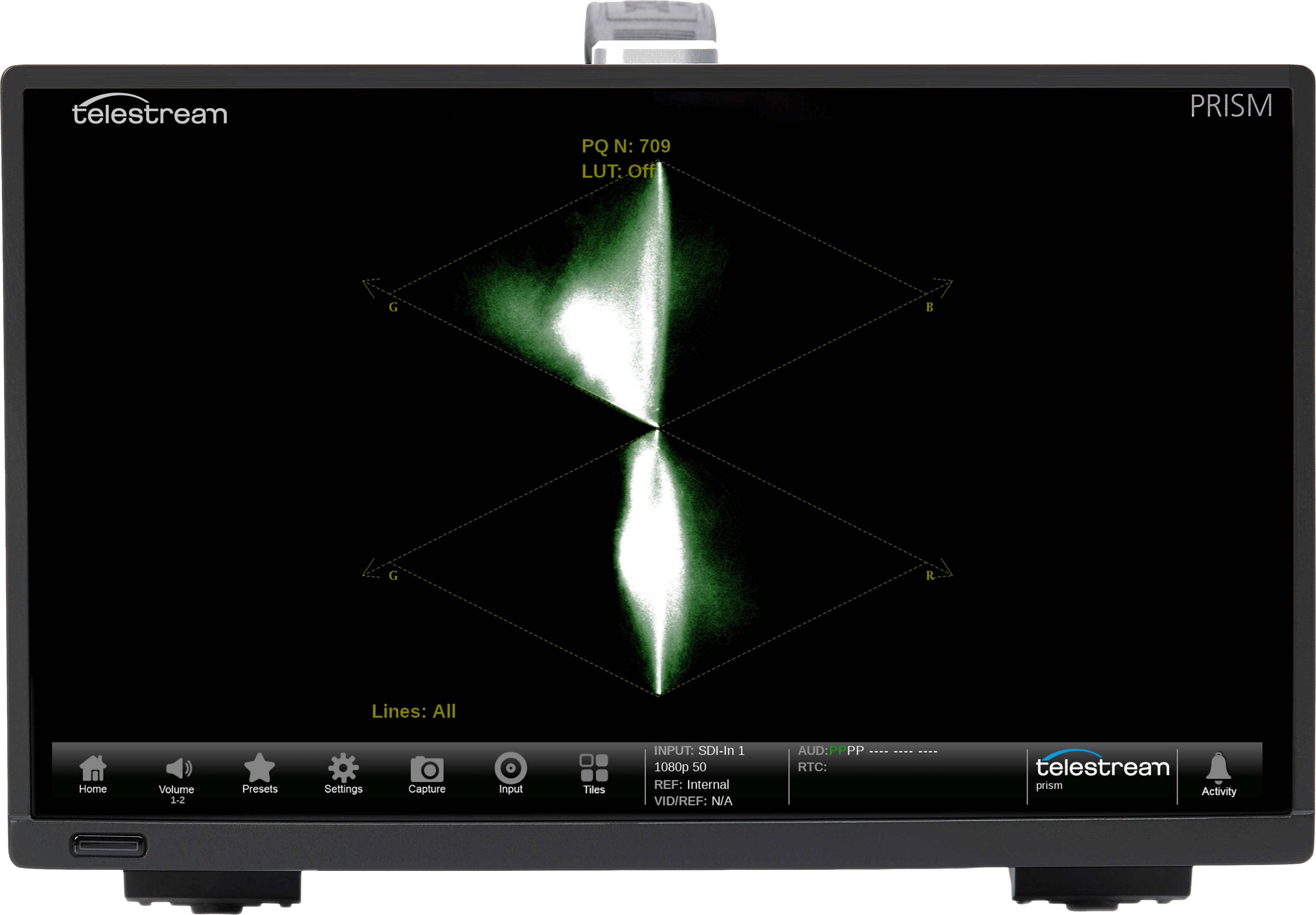

Diamond Display

Provides an X-Y Plot of G versus B in upper trace and G versus R in lower trace for easy identification or RGB components. Used by Camera Shaders and Colorist for simple adjustment of the RGB signal.

Learn more

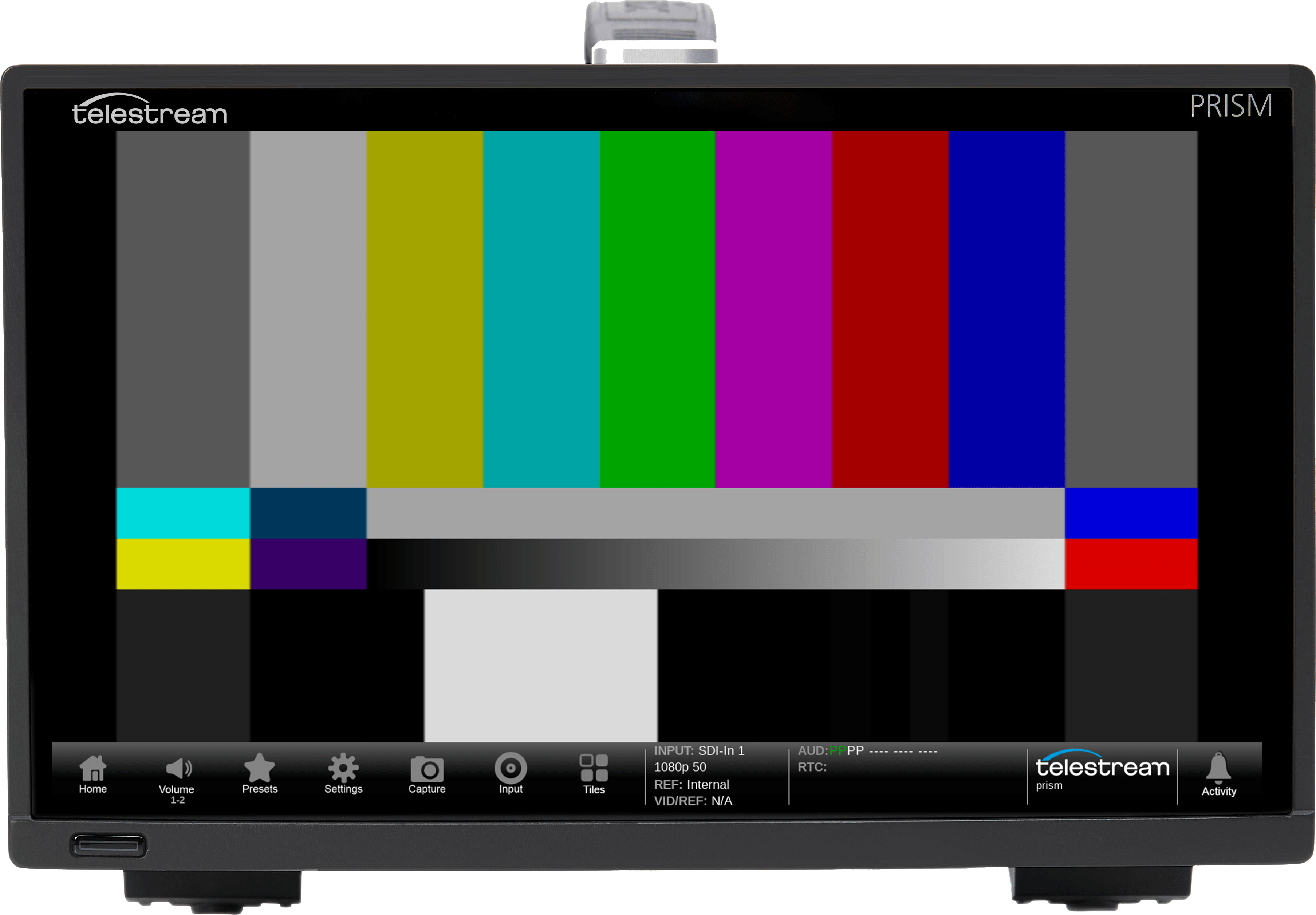

Picture Display

Shows a decoded image of the currently selected input. For visual identification of the image and to aid in troubleshooting issues.

Learn more

Video Session

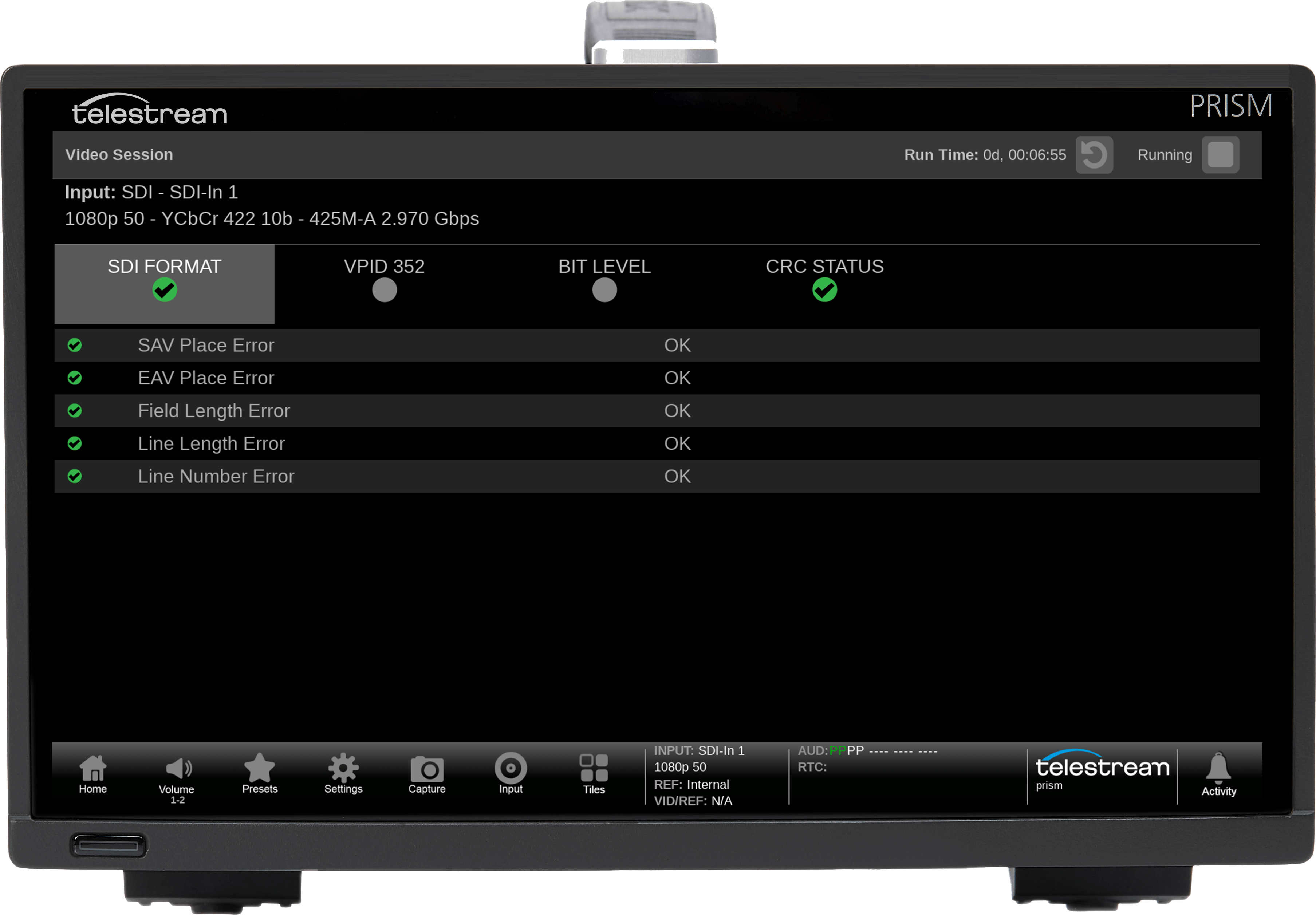

Provides a summary of the SDI Format with SDI VPID SMPTE ST352, Bit Level and CRC Status. For IP streams provides summary of Format and Bit Level.

Learn more

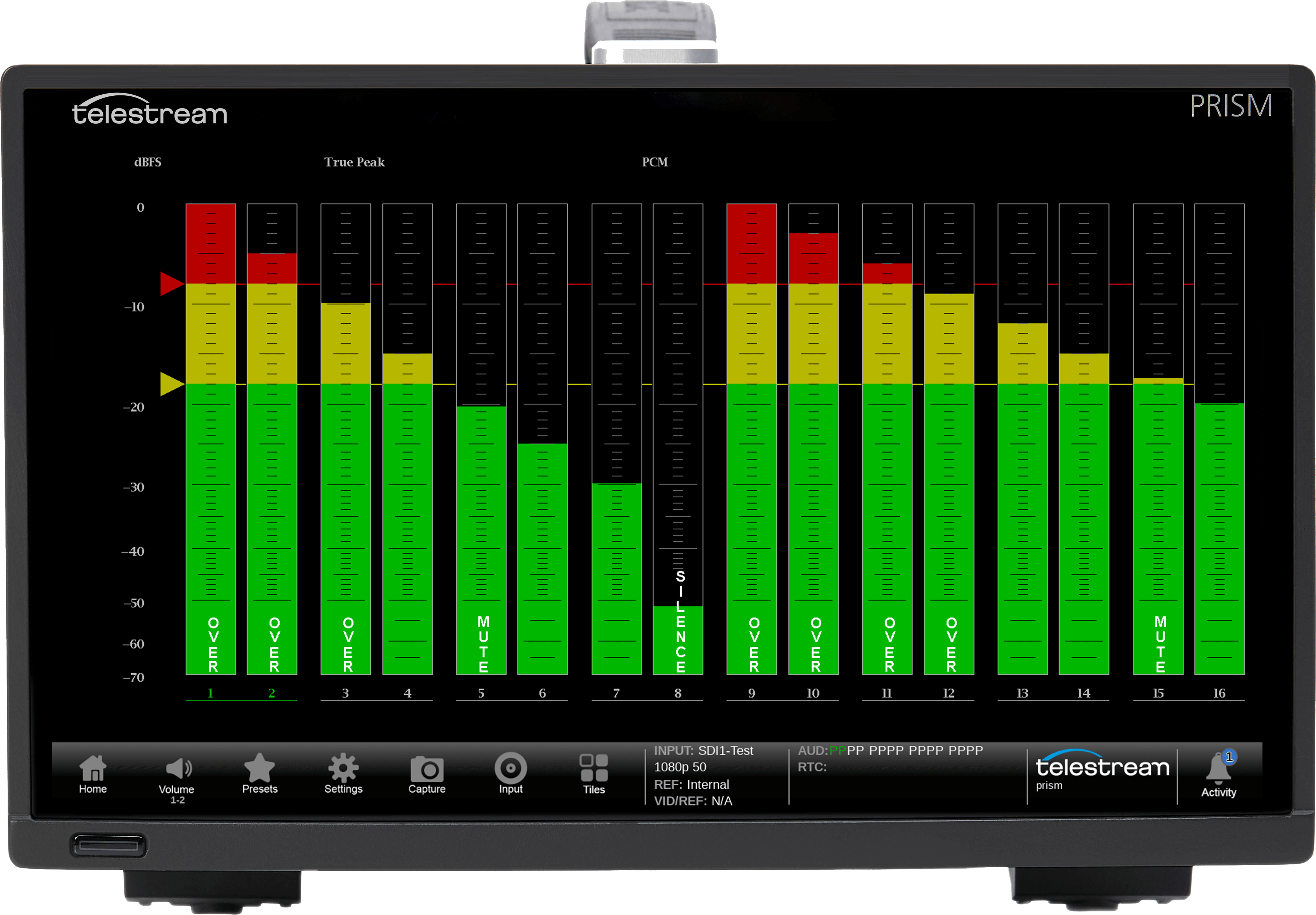

Audio Display

For the selected input audio levels can be show for each audio channel with in-bar indication for such events as over, clip, mute and silence. With configurable ballistics for True Peak, PPM1 and PPM2.

Learn more

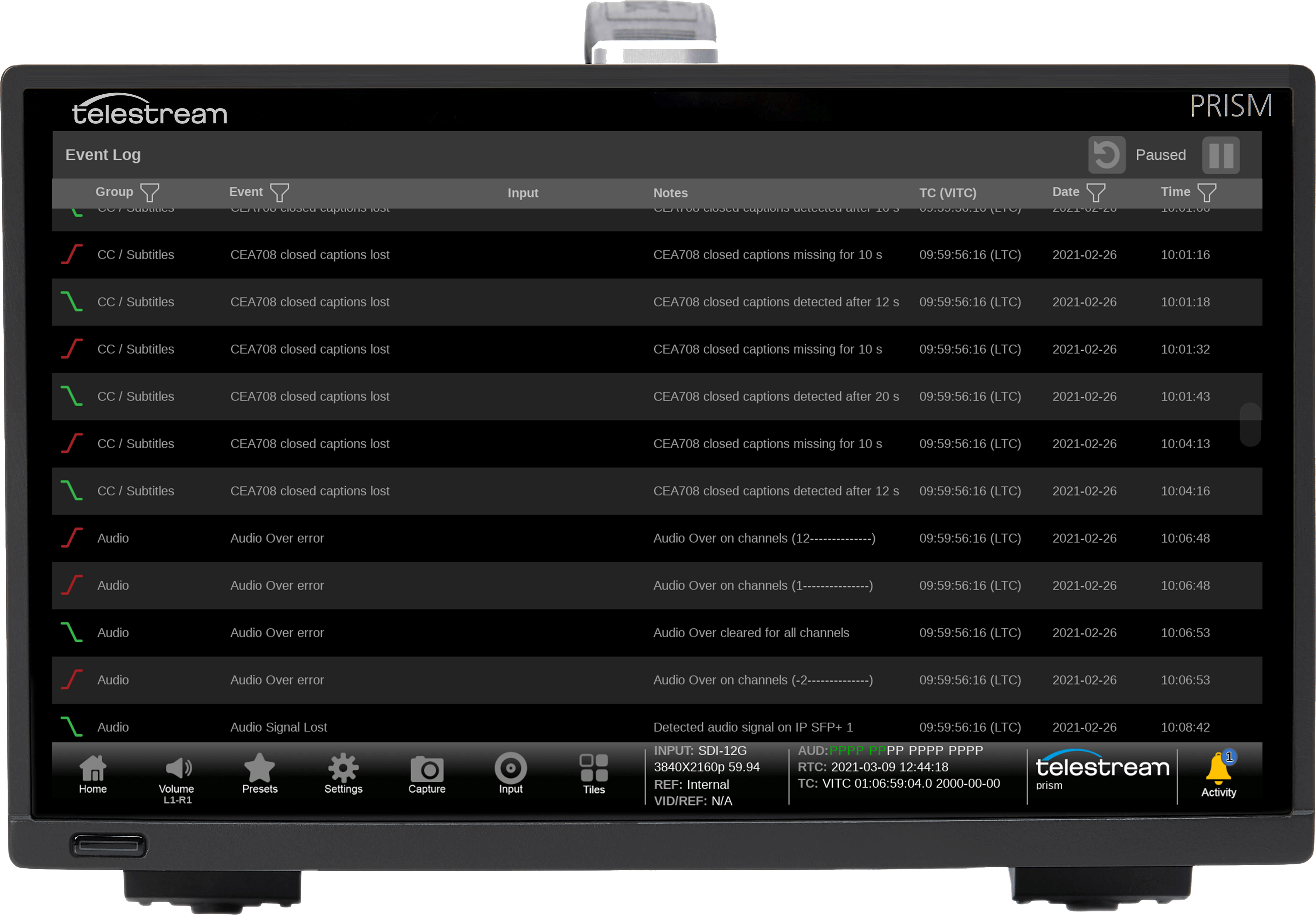

Event Log

Shows a list of alarm events related to Source and Time the event occurred relative to internal time or derived from the input Timecode or PTP Time.

Learn more

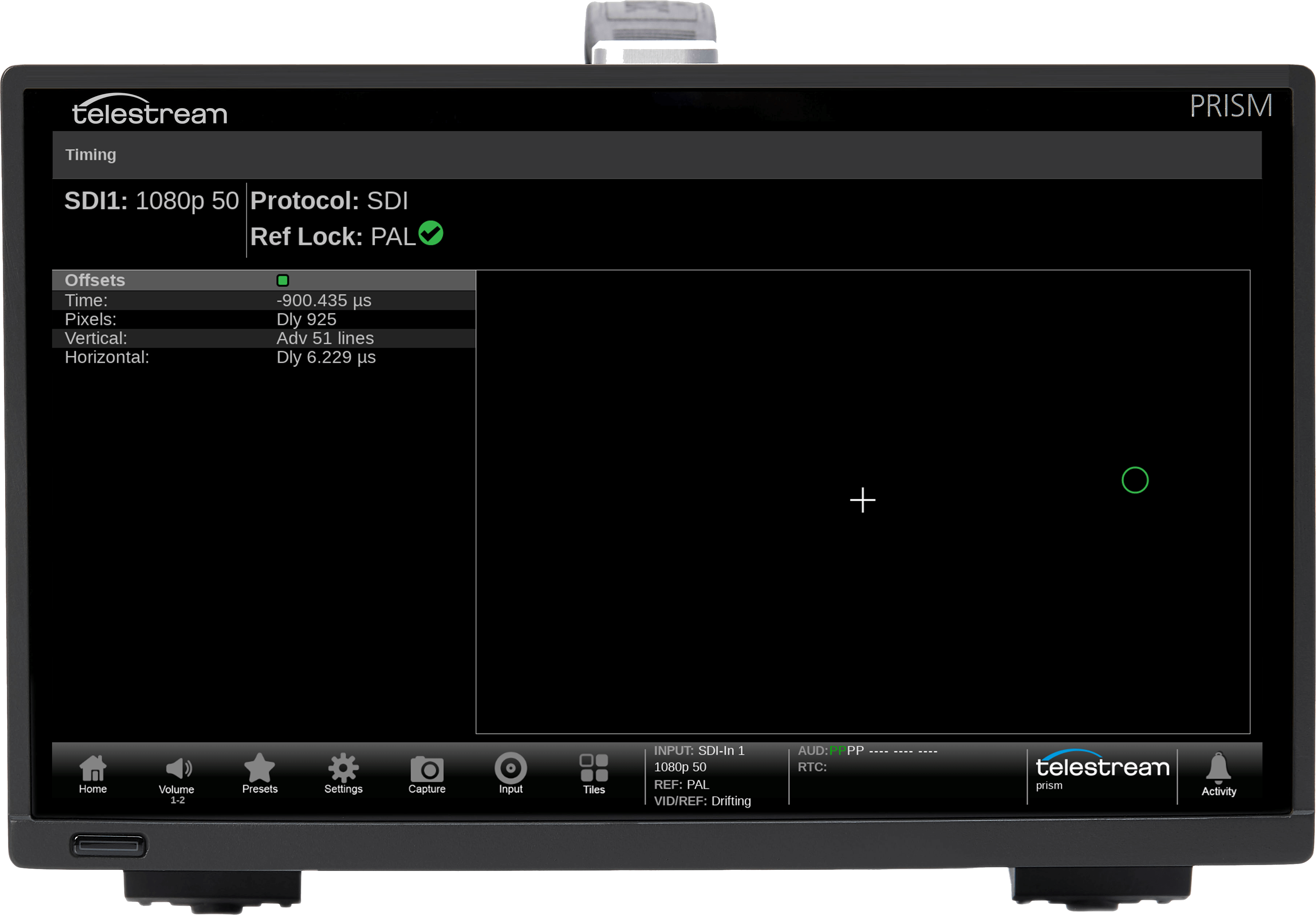

Timing Display

Show the input timing relative to the reference of Black Burst, Tri-Level or PTP (Requires option IP-MEAS) and allows the user to make simple timing adjustments to ensure synchronization within the facility.

Learn more

External Reference Display

When an analog reference is connected to the rear of the instrument this display will show the waveform trace of NTSC, PAL or Tri-Level Sync signal with a variety of Gain Sweep and Mag controls.

Learn more

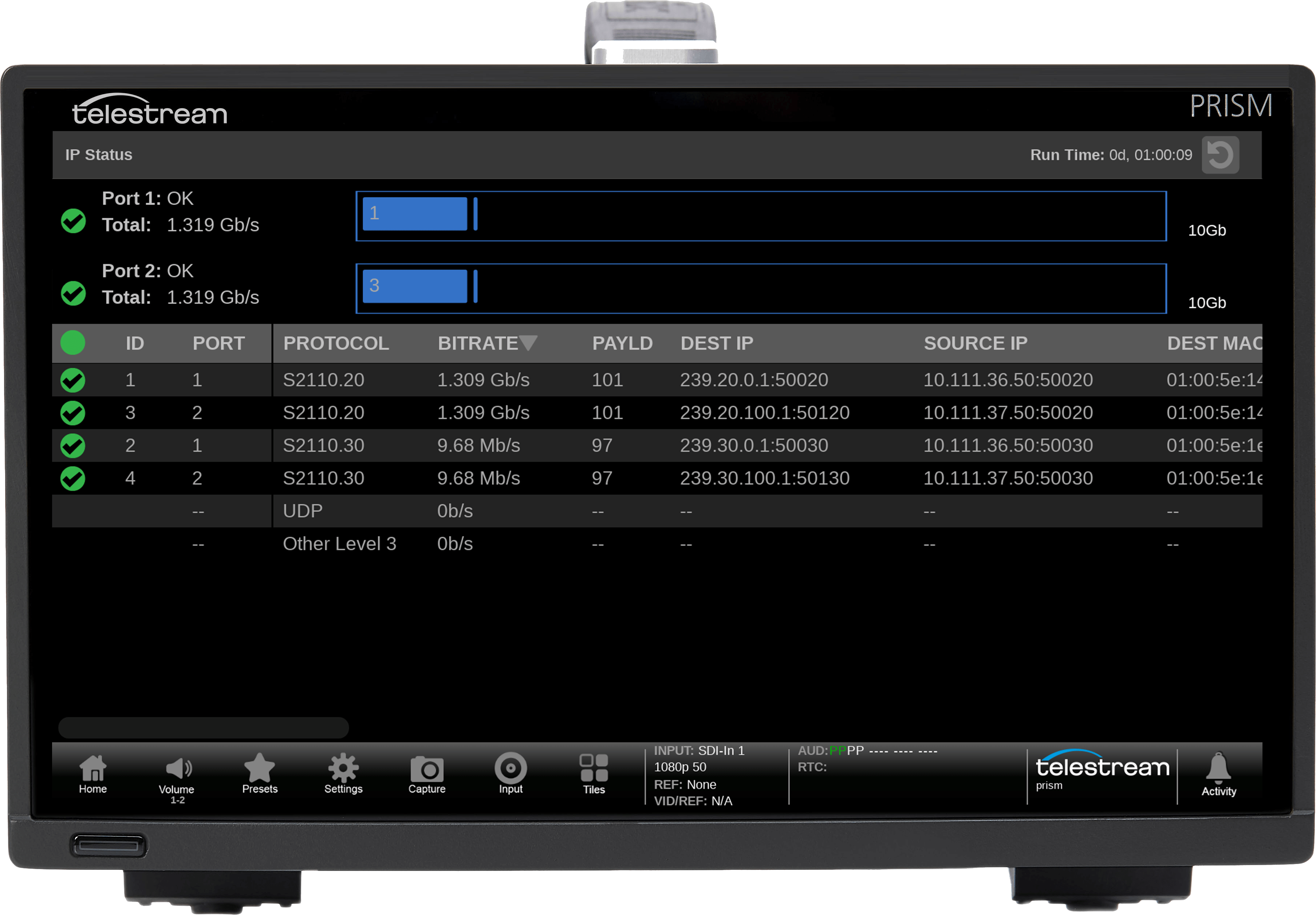

IP Status

For IP signals provides a summary of Protocol, Bitrate, Payload Type, IP/MAC addresses, PTP Domain, Sequence Error, RTP Clock and RTP Marker Frequency for either SFP ports.

Learn more

Optional Apps

Expands the standard capabilities to unlock a wide range of measurement to address your specific application.

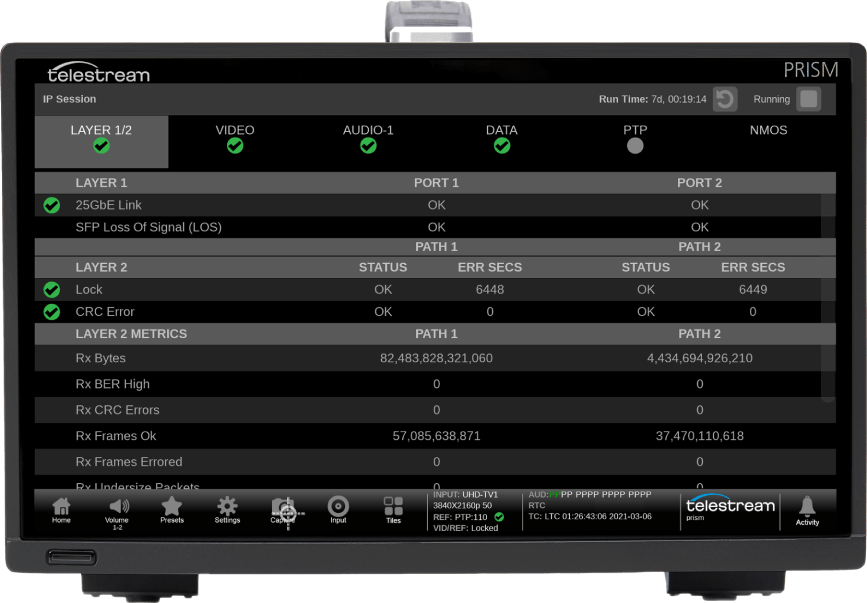

IP Session

IP Session provides a summary of information for the decoded stream. With information on Layer 1 and 2. Along with syntax information on the video, audio and data streams. Summary information is provided on PTP and NMOS applications to assist the user in diagnosing problems. Requires option IP-MEAS to be installed in the instrument.

Learn more

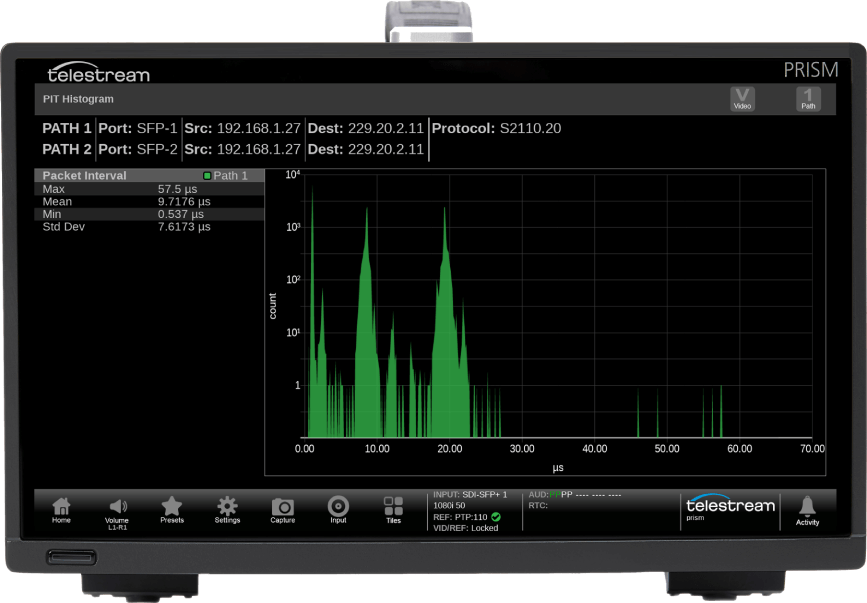

PIT Histogram

PIT Histogram provides a graphical plot of the packet arrival times of the signal being decoded for video, audio and data. The characteristic signature of the Histogram can be used to diagnose the type of Sender and help determine issues with network congestion. Requires option IP-MEAS to be installed in the instrument.

Learn more

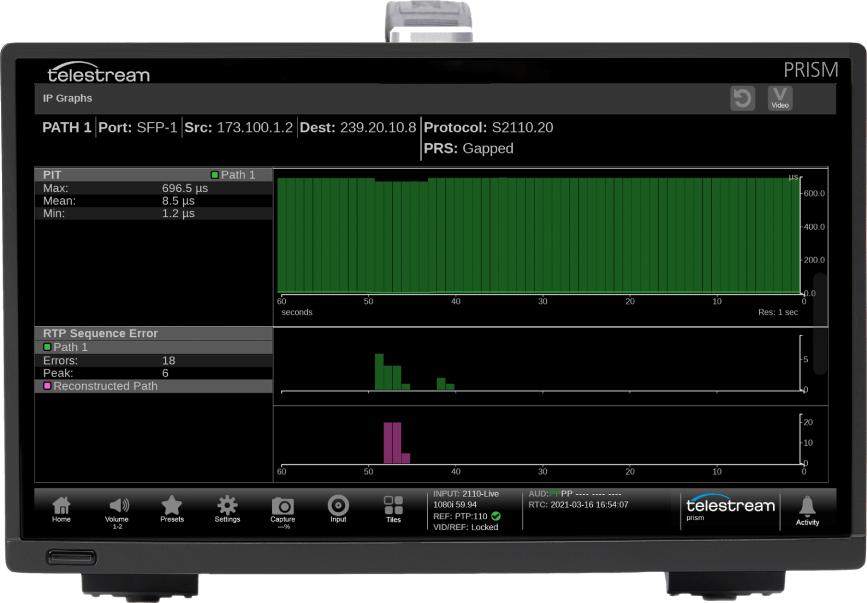

IP Graphs

IP graphs provides graphical plots of parameter such as Total Bit Rate, Session Bit Rate, PIT arrival time and RTP Sequence Errors. These graphs can be plotted from the last 60 seconds to twenty-four hours. Allow users to see trending information of their decoded streams over time. Requires option IP-MEAS to be installed in the instrument.

Learn more

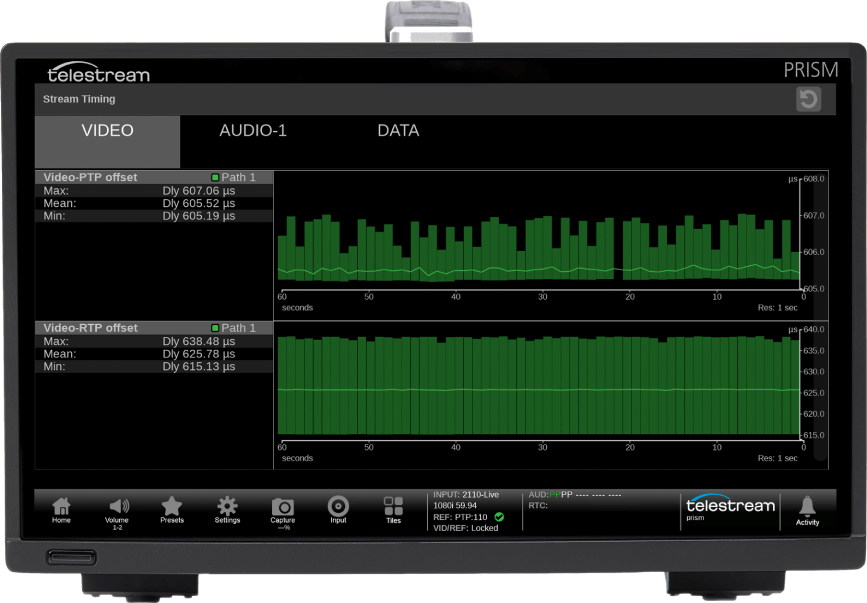

Stream Timing

Provides graphical plots of the timing for ST 2110 video, audio and data. Comparing the data as it was received by PRISM relative to the embedded RTP time stamps and PTP. Stream Timing can be used to check the synchronization of each sender to PTP for the various flows. Requires option IP-MEAS to be installed in the instrument.

Learn more

PTP Graphs

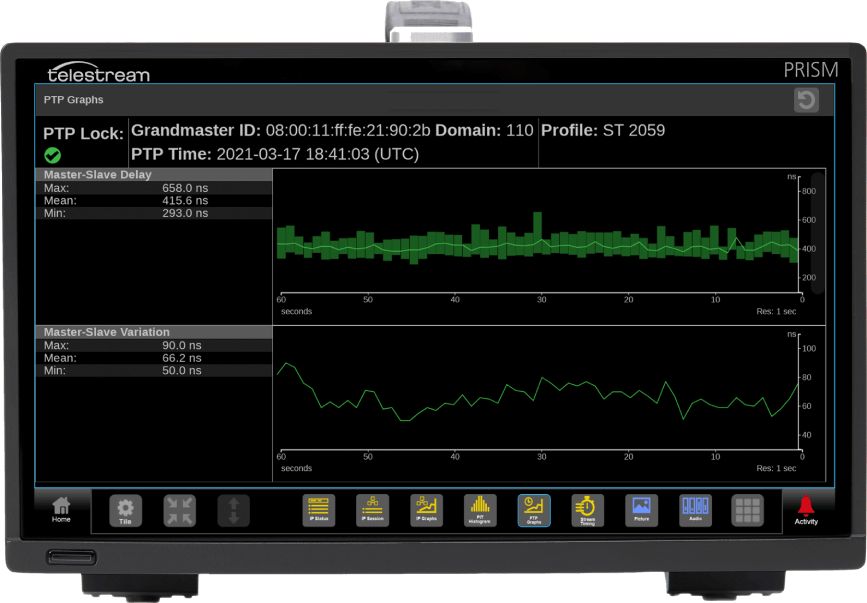

Trending graphs of various performance parameters of the PTP signal can be plotted from 60 seconds to 24 hours. Allowing users to track the stability of PTP within the network. Requires option IP-MEAS to be installed in the instrument.

Learn more

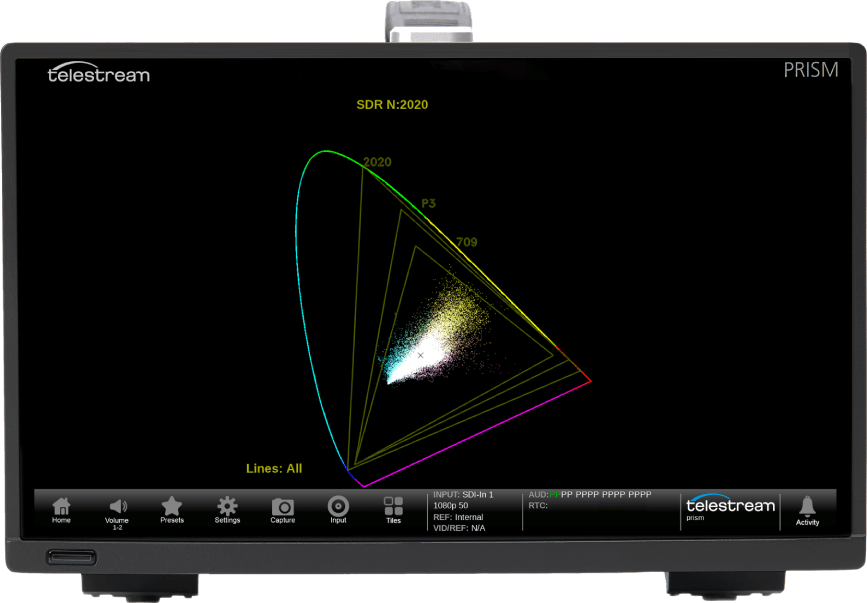

CIE Display

Video data is plotted as either a 1931 or 1976 CIE diagram. This display can be used to check the chromaticity of the video signal and determine compliance to specific gamut limits such as BT.2020, DCI-P3 or Rec. 709 Requires option PROD to be installed in the instrument

Learn more

Stop Display

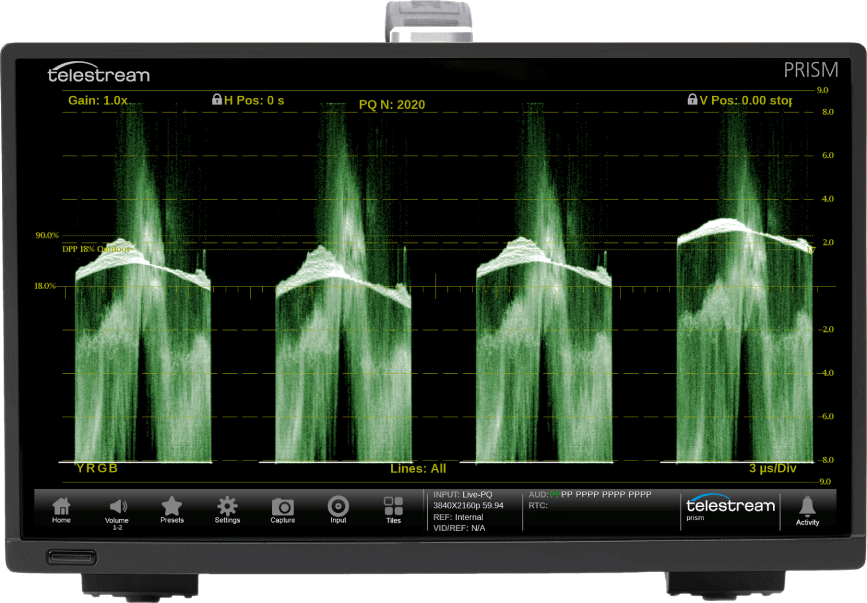

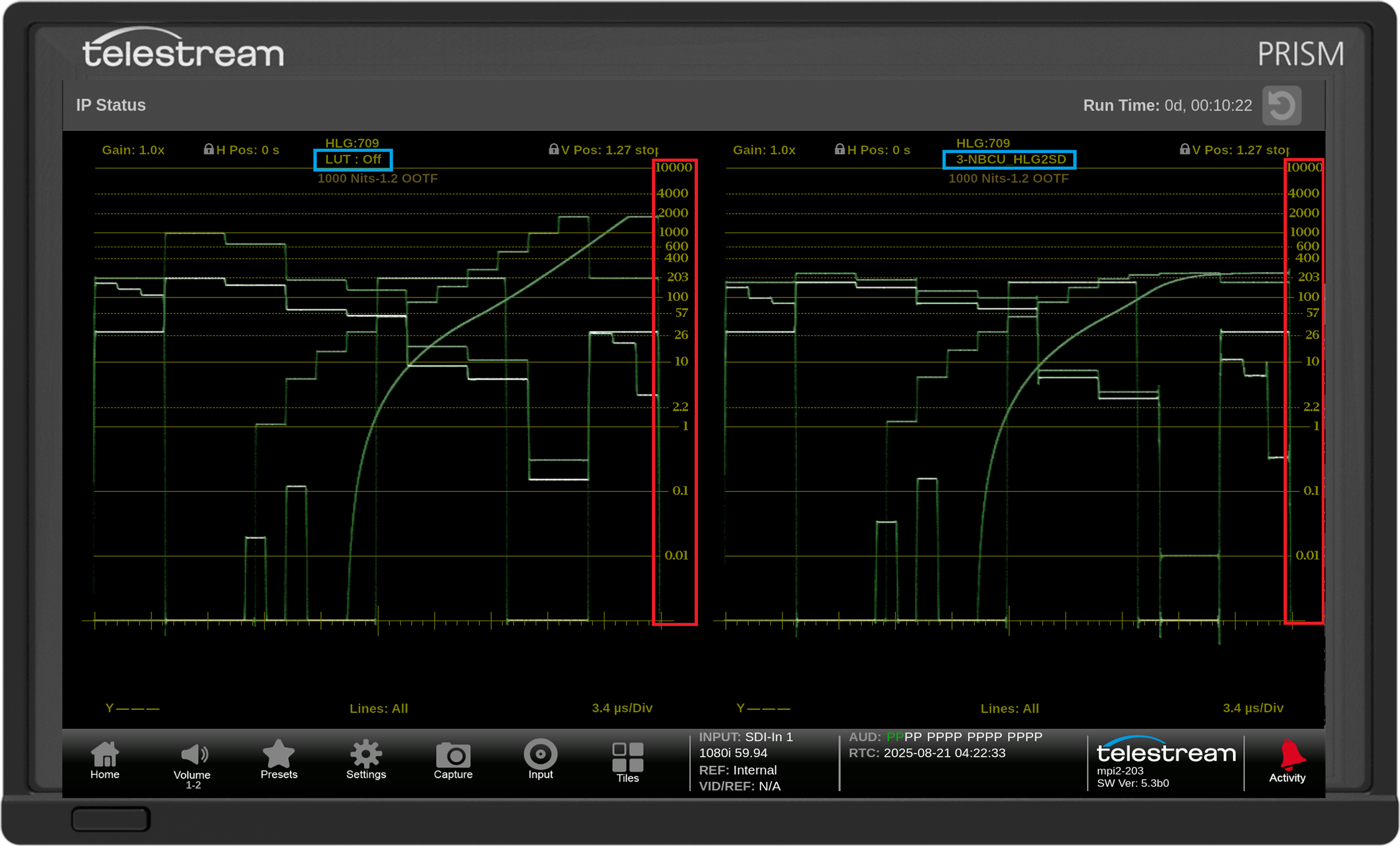

The Telestream Stop Display provides a tool to monitor the video signal with a variety of transfer functions in a consistent manner. This simplifies monitor of camera raw and High Dynamic Range (HDR) content to provide a consistent look. Requires option PROD to be installed in the instrument

Learn more


Camera Alignment Monitoring allows the user to monitor up to four SDI waveform inputs simultaneously. This is ideal for camera balance and shading applications allowing the user to compare levels across the various inputs in YRGB parade. A thumbnail and input identification are also available in this mode. Requires option MULTI to be installed.

Learn more

Dolby Status

This display shows the Dolby Metadata present within the Dolby signal or present within an ANC Packet as standardized in SMPTE ST 2020. The AUD option is required and if the user want to decode the Dolby signal option DLBY is required.

Learn more

AES Channel Status

AES Channel Status display provides information on the audio signals Channel Status bits. When the Channel Use mode is shown as Profession the syntax can be automatically decoded. The AUD option is required for this application.

Learn more

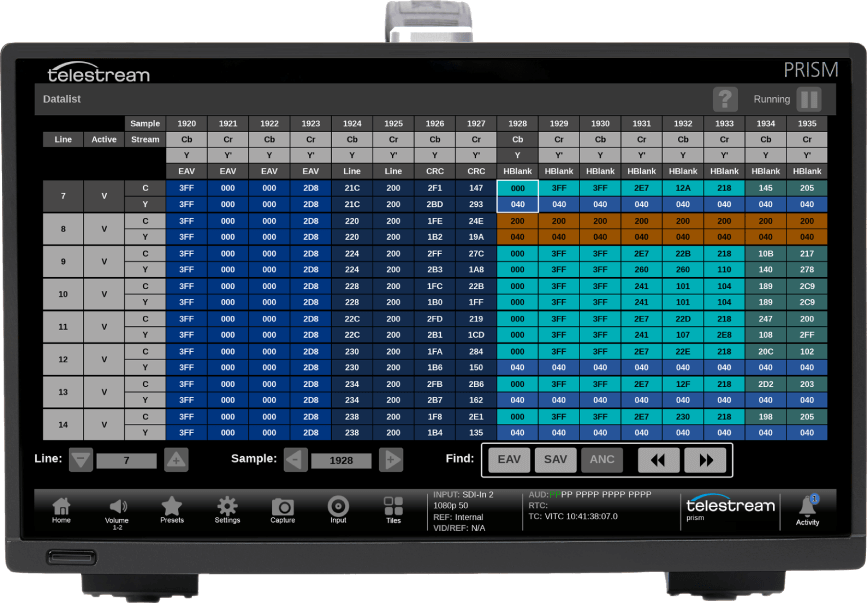

Datalist display can be used to view the samples of the SDI signals. The user can search through the data for Start of Active Video (SAV) or End of Active Video (EAV) or the next ANC Data packet. Option ENG-QC is required for this application.

Learn more

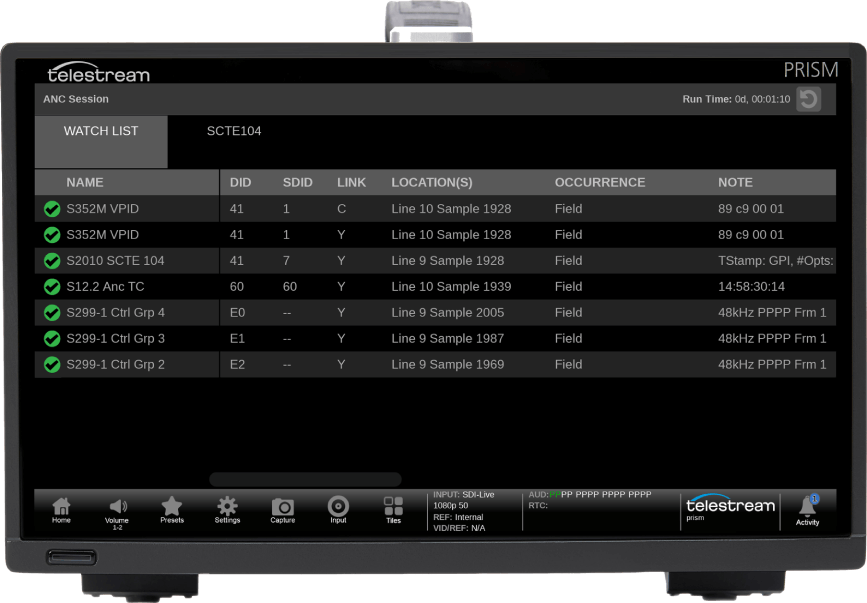

ANC Session

ANC Session provides a watchlist of the available Ancillary Data types present within the signal and provides information on DID, SDID, Link, location and occurrence of the packets. With decode of SCTE 104 messaging. Option ENG-QC is required for this application.

Learn more

Eye Display

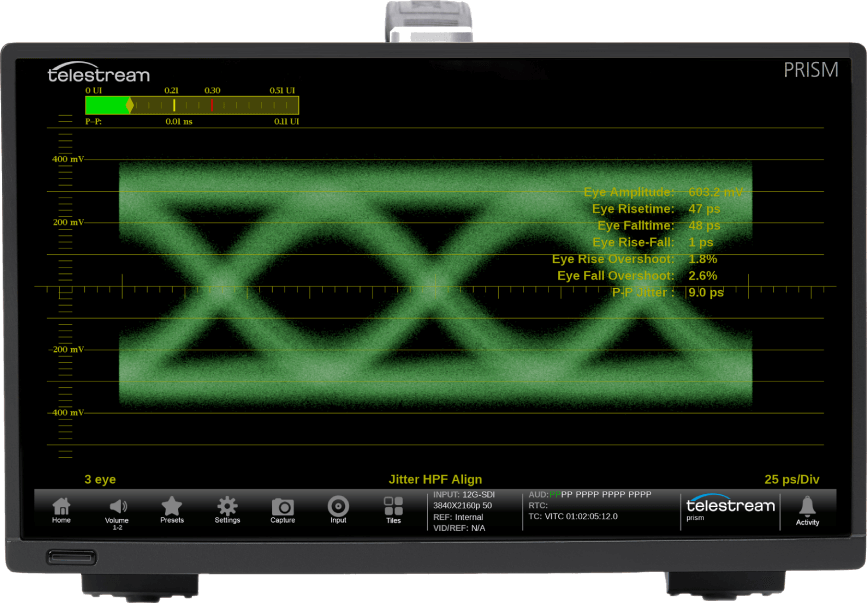

The Eye Display provides a measurement of the SDI physical layer for Timing and Alignment with automated measurements. The Eye Display feature is available in MPS300, MPD300, and MPP300 as standard. Option FMT-4K to enable the support for 6G and 12G SDI.

Learn more

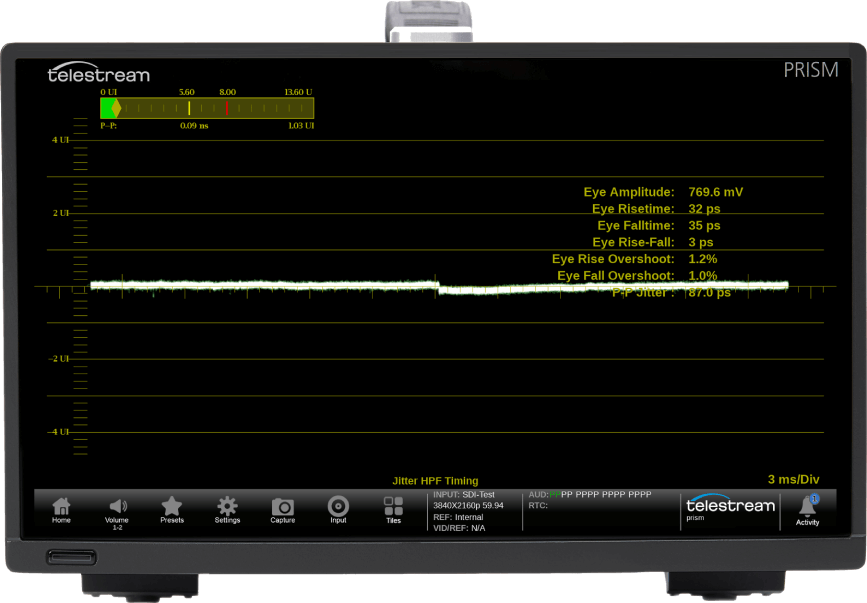

Jitter Display

The Jitter Display can be used in conjunction with the Eye display to measure the physical layer of the SDI signal. The Jitter Display feature is available in MPS300, MPD300, and MPP300 as standard. Option FMT-4K to enable the support for 6G and 12G SDI.

Learn more

AV Delay

The Audio to Video Delay measurement measures the presentation time difference of Audio and Video using the AV Timing mode test signal (Flash & Pop) generated by the Telestream Sync Pulse Generator products. The user can measure lip sync timing of PCM / Dolby over SDI, ST 2110 and ST 2022-6 signals. Option ENG-QC is required for this application.

Learn more

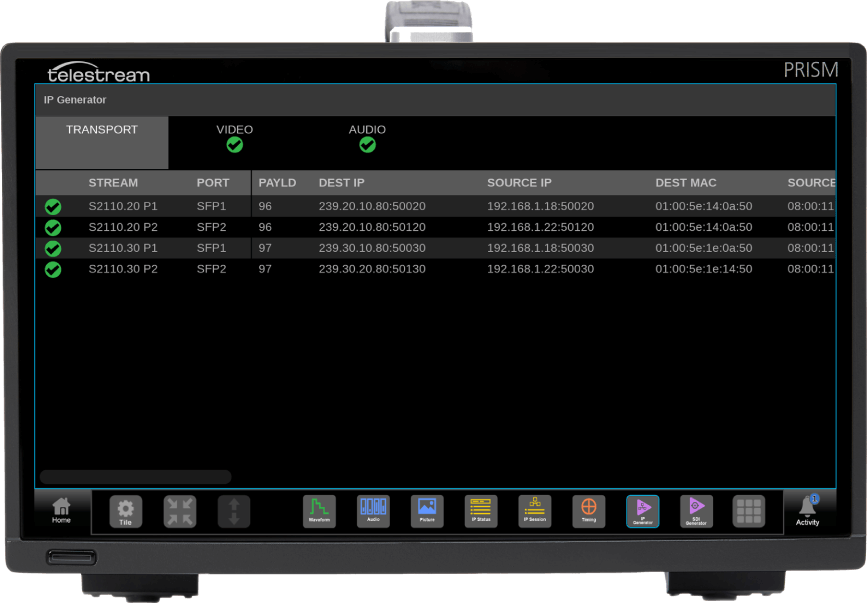

IP Generator

IP Generator provides a simple test pattern generator for ST 2110 for color bars and audio tones. Requires GEN option.

Learn more

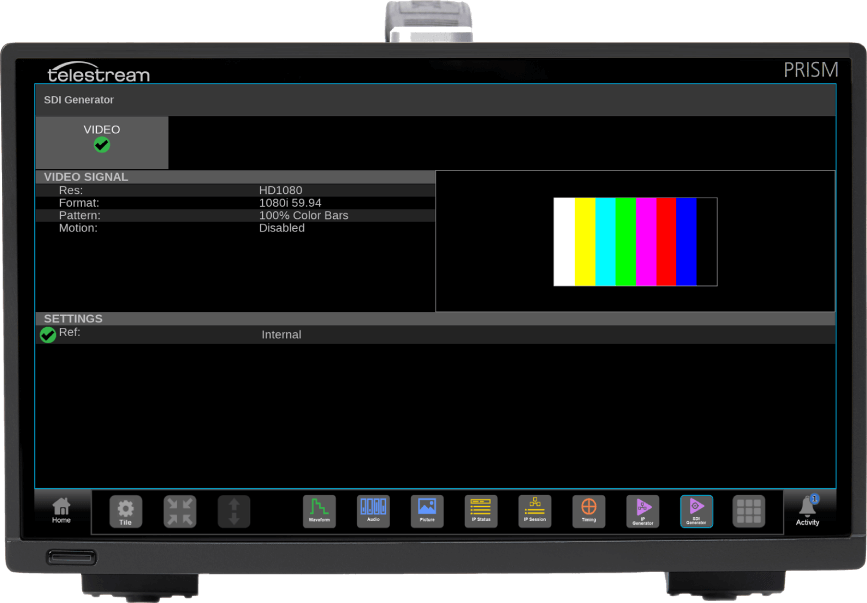

SDI Generator

SDI Generator provides a simple test pattern generator with color bar test signal. Requires GEN option.

Learn more

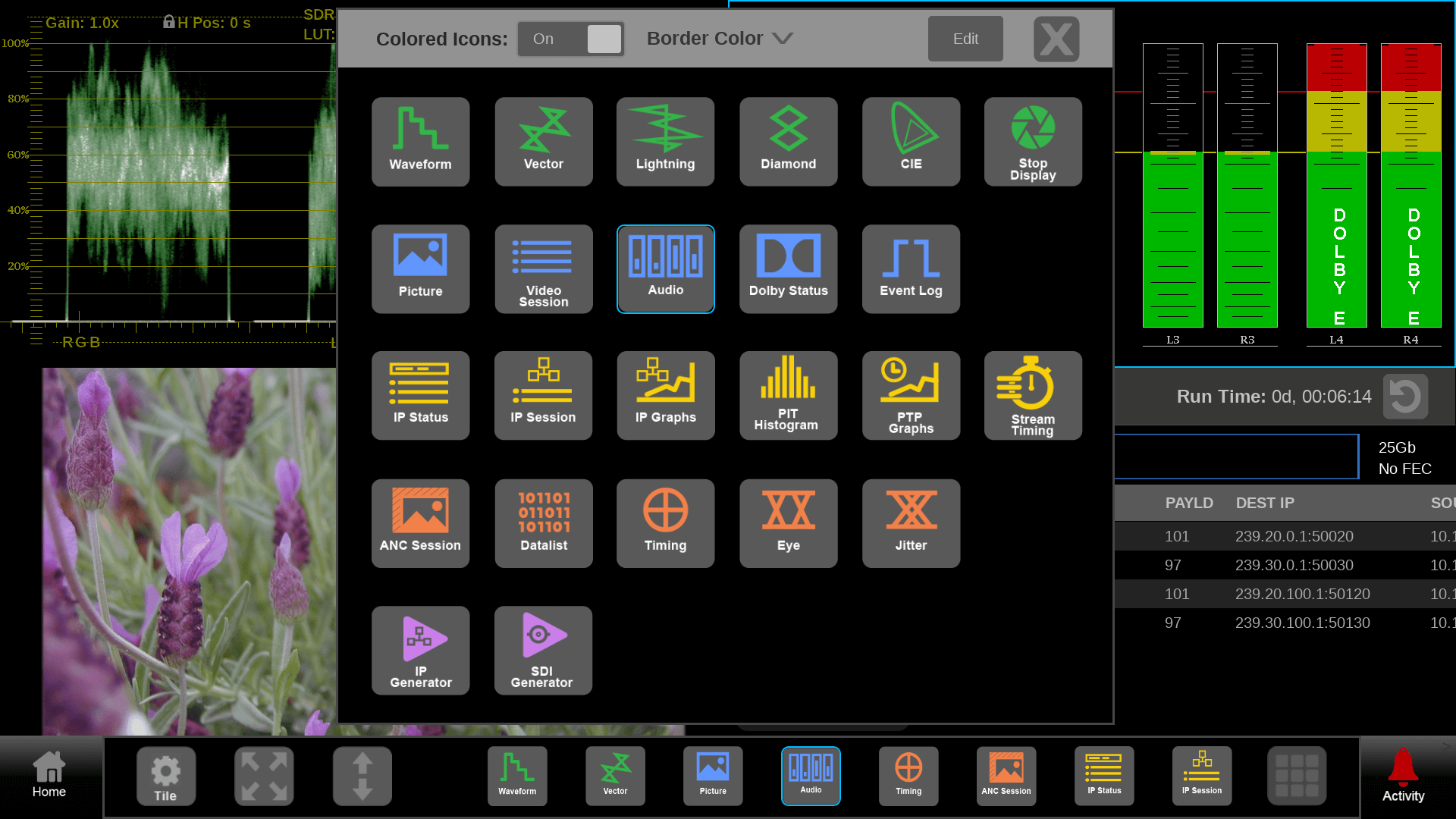

Customization and Personalization

PRISM is designed to be used in multiple applications from HD-SDI Live Acquisition to 25G ST 2110 IP Engineering and diagnostics. Software modules Options can be added any time to customize the instrument to meet the needs of job at hand.

The software based UI can then be personalized to meet the needs of the individuals on the team and how they like to work. These configurations can be stored as presets for quick instrument setup when needed.

With multiple ways to mount and install the instrument and multiple ways to interact with, and control the instrument, PRISM fits comfortably into any environment.

Learn more

Flexible Display Configurations

Single Display

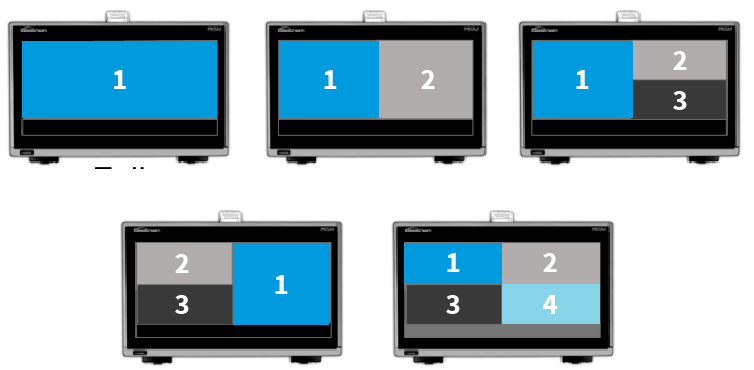

Flexible tile configurations provide full screen, two, three and four tile layouts giving flexibility in selecting a variety of software apps for your specific application while still allow easy viewing of each display. Each layout can be customized for each user and assigned as a preset.

Dual Display

With Dual screen displays each display can be configured the same way you can configure a single screen instrument providing an abundance of ways to personalize the user experience. Your layout can go from two full tiles to a total of eight quarter tile display applications and anything in between.

Multi-Input Monitoring

With the MULTI option operators can easily compare different input channels and use the wide variety of Apps within PRISM that can be tailored to meet your applications. These various configurations can be saved as presets for easy recall and gives operators and engineers the ability to customize the inputs and applications to suit their needs from camera shading to color correcting with HDR and SDR content.

Remote Connectivity

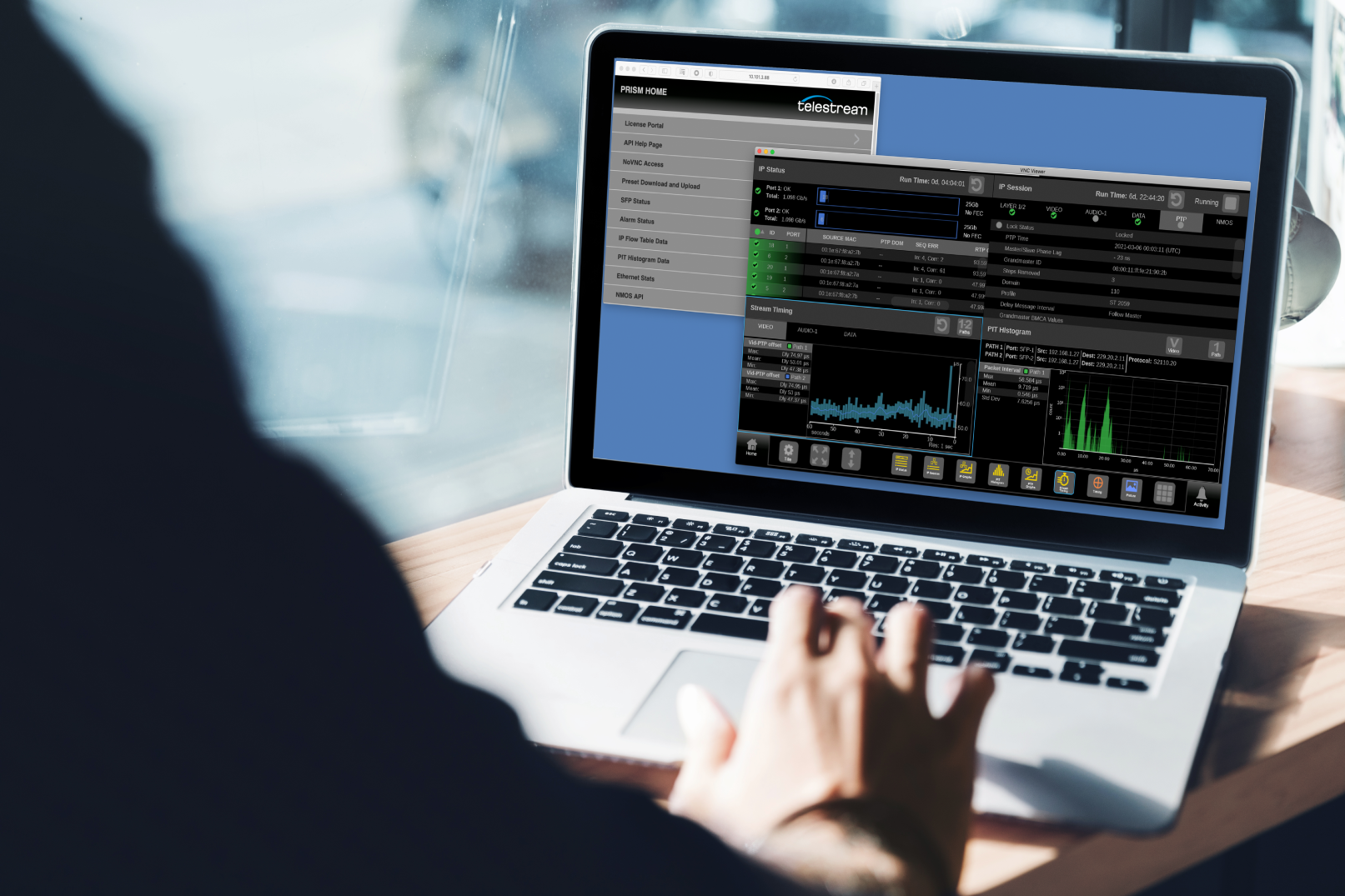

Engineering and production staff increasingly need to work remotely, and PRISM can be controlled via webRTC or noVNC using the same UI that can be accessed from the front panel. Providing the user with fully featured access to the monitoring and measurement applications available within PRISM.

WebRTC offers the ability to stream the display via a Chrome web browser for real-time update of the displays and ability to listen to audio of the selected channels, Recordings can be made from the browser and saved to your local PC for help review or troubleshooting issues.

Remotely configure and export presets, download the event log and use Syslog for remote analysis of events and alarms.

High Dynamic Range Exposure Measurement

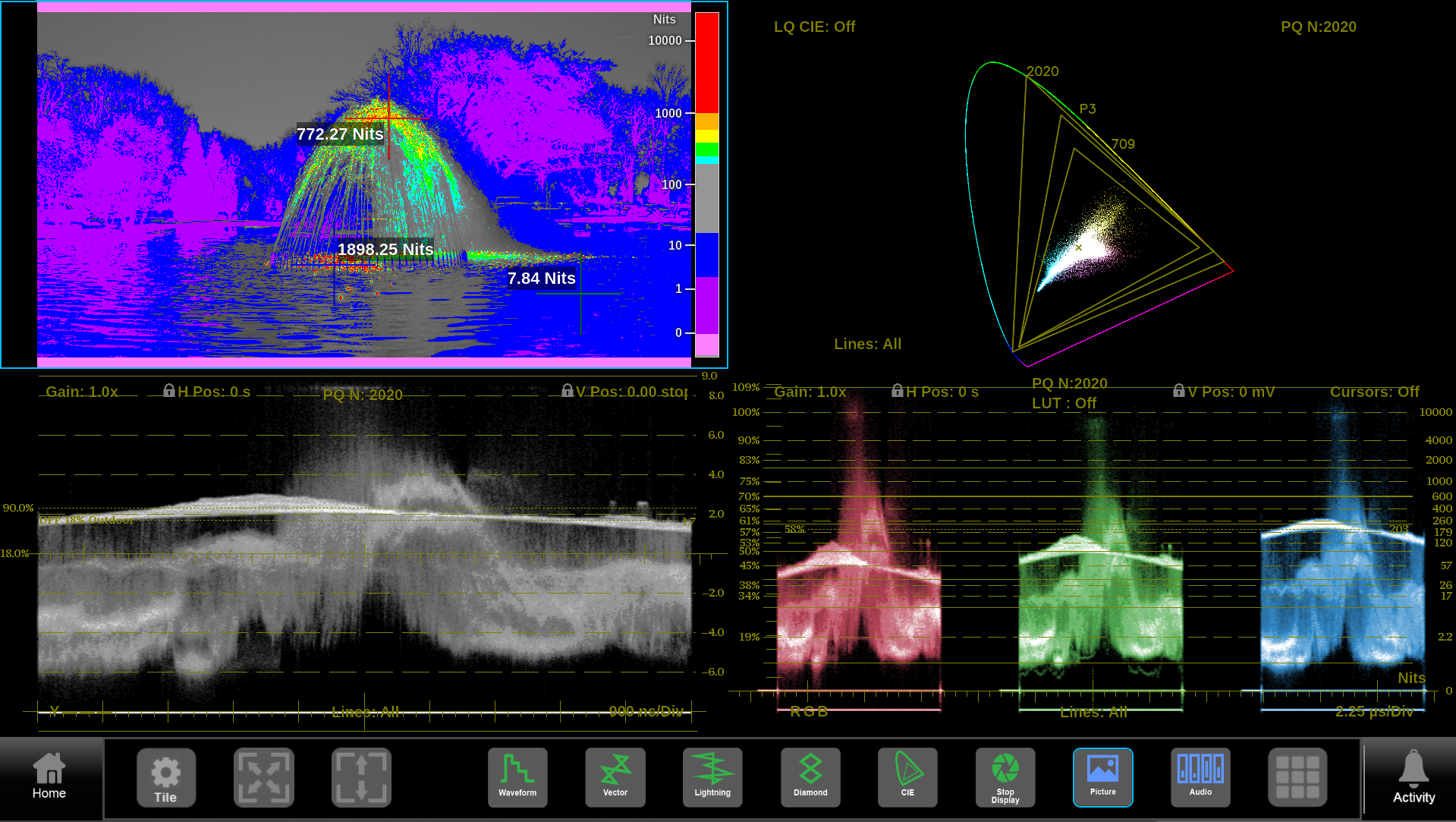

Managing exposure is key to the creation of great content. PRISM provides a mix of traditional and new tools such as False Color Displays, STOP waveform, Lightmeter and internal LUTs for managing S-Log 2, S-Log 3, Log-C, HLG and PQ gamma curves to enable objective level and luminance area measurements to ensure consistency.

Learn more

Wide Color Gamut and Color Management

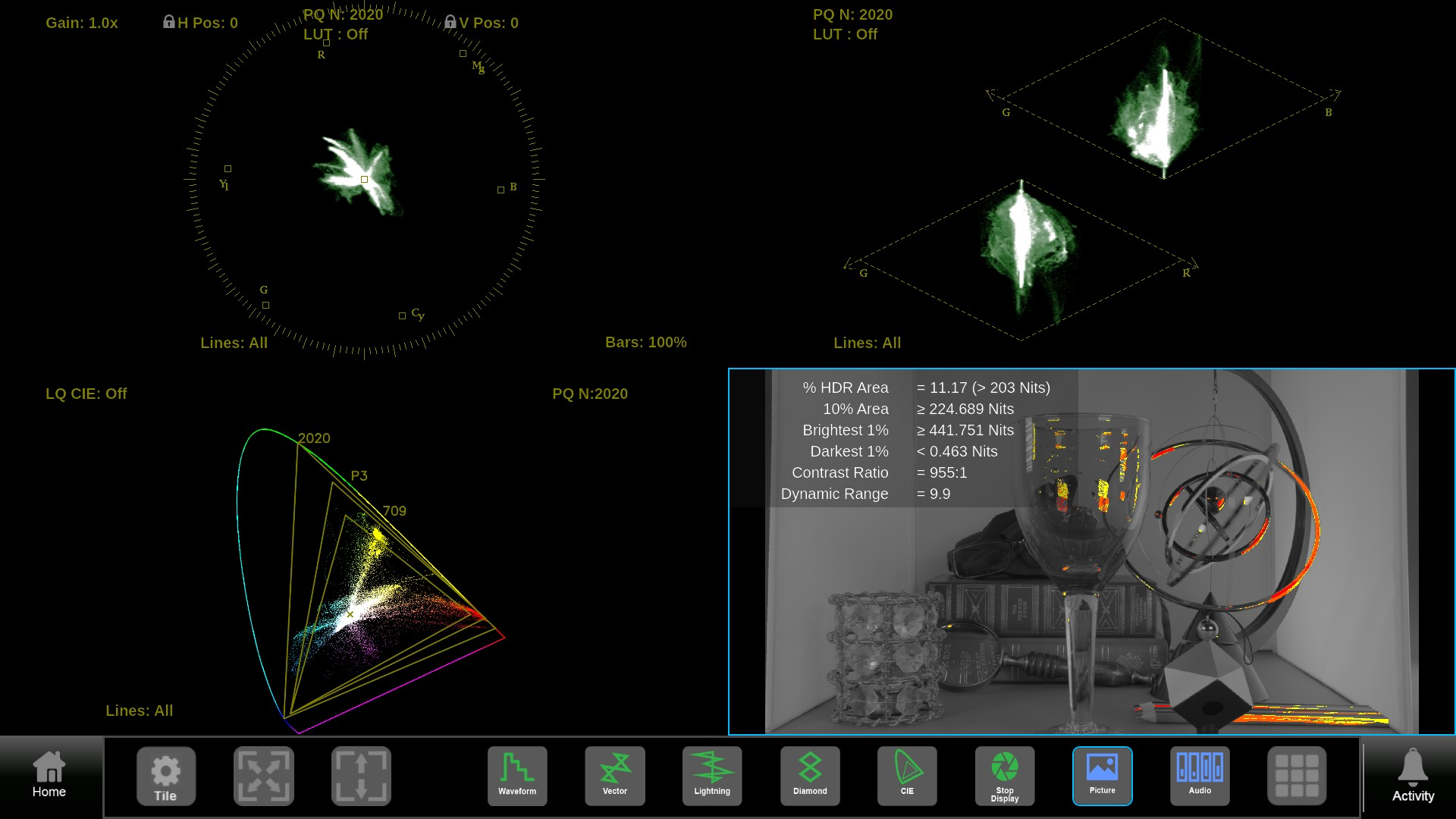

The combination of high resolution, wide color gamut and high dynamic range can bring the image to life.

PRISM provides all the tools needed to balance your camera, check color consistency and master in multiple color spaces. The Vector and CIE chart displays provides adjustment of color for Rec. 709 and 2020 color spaces. The Telestream Diamond display simplifies adjustment of the R/G/B components.

The CIE charts ensure compliance for Rec. 709, 2020 and DCI P3 with False Color Gamut overlays in the picture display make it easy to identify colors that are outside the DCI-P3 or Rec.709 color space.

Learn more

Audio Monitoring

PRISM provides a set of audio monitoring tools for embedded audio and ST 2110-30 or -31. Including configurable audio bars, Loudness measurement, Surround Sound, Lissajous phase, and Audio Session displays, for monitoring multi-channel 5.1, 7.1 and 7.1.4 mixes with Dolby Digital and E decoding. Dolby ED2 is supported for Metadata display in Dolby Status. Display up to 32 Channels of audio for 8K productions.

Listen to the selected audio channels or downmixed stereo channels via headphones.

For post-production applications the MPP200/300 offer eight channel analog audio outputs for de-embedding audio from SDI and IP streams or by decoding Dolby D/E to 5.1 or 7.1 outputs.

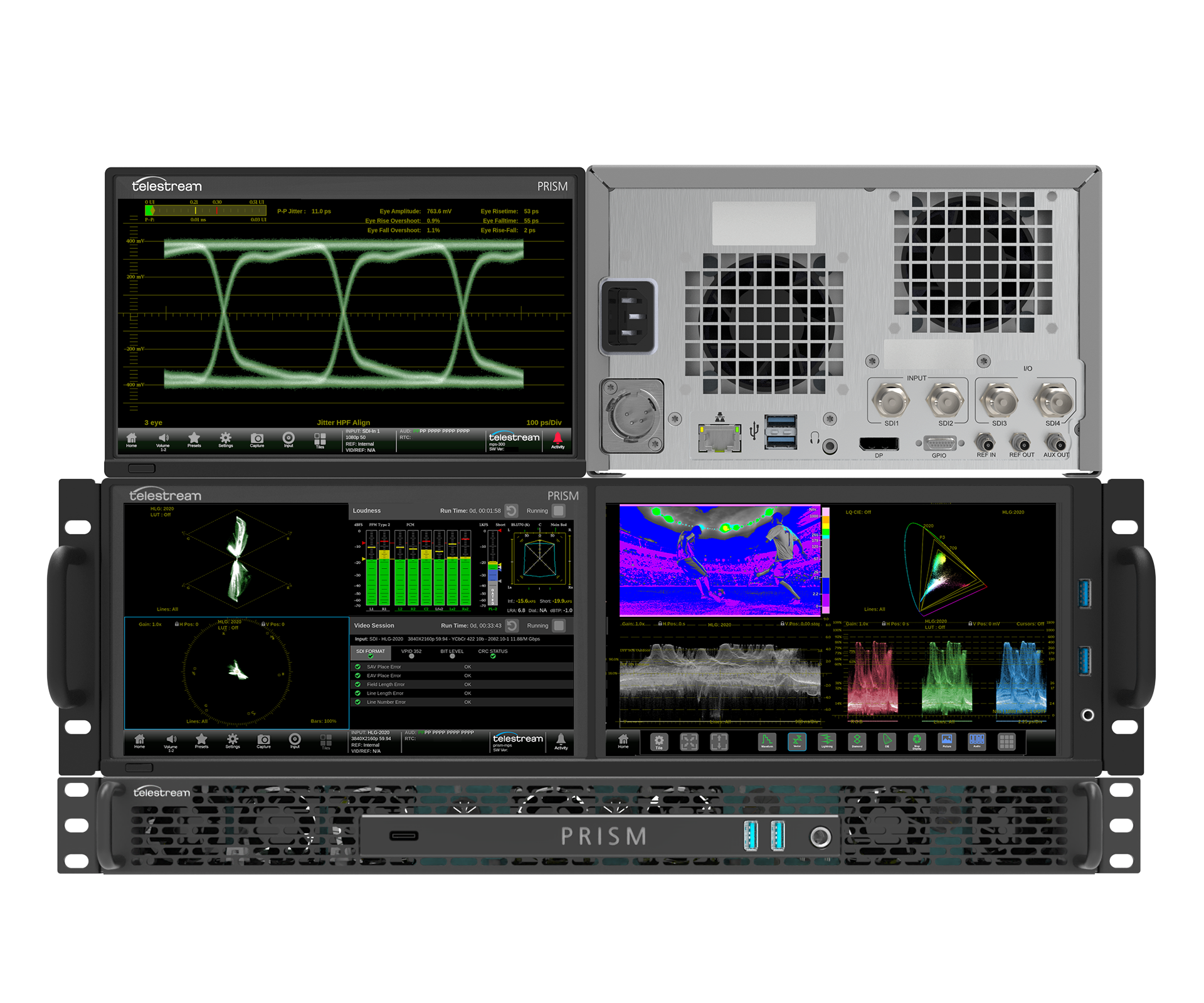

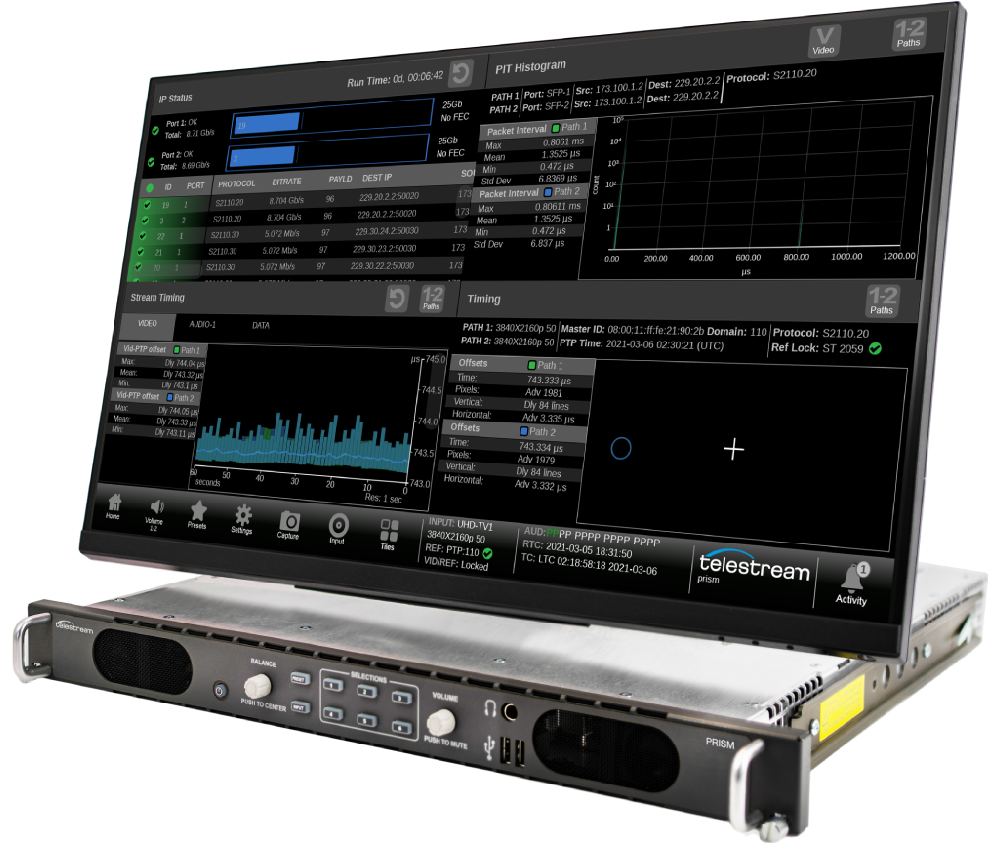

MPP300 front and rear panels

SDI Monitoring

The MPS, MPD and MPP 100 series offer SDI only configurations of the PRISM family of waveform monitors. Offering a range of tools to suite a variety of monitoring applications with four SDI inputs that support from SD-SDI to 8K. With the ability to monitor HDR and SDR using waveform and STOP displays. Supporting 709 and 2020 color spaces with traditional vector and CIE displays. For monitoring of SDI embedded audio. The 100 series offers audio levels, Lissajous, loudness monitoring and RTW surround display. The variety of software applications can be tailored to suit your application from camera balance to post-productions or network operations.

SDI Engineering and Maintenance

Ensuring continued operation of equipment within the facility or network is critical to maintaining a high quality. The Telestream PRISM provides and extensive set of tools to aid in troubleshooting problems and diagnosing issues. For SDI a 12G Eye display can be used to check on the health of transmission of the signal.

With the Datalist and ANC Session allowing investigation of metadata issues to ensure SCTE104, Closed Captions and AFD are present within the signal and being decoded correctly.

For validation of Lip Sync issues AV Delay measures the timing difference between audio to video using a simple flash pop sequence generated by the Telestream SPG and provides a measurement of advance or delay for up to 16 channels.

IP Facility Design, Commissioning and Maintenance

The transition to IP needs a comprehensive tool set to provide visibility of your Audio, Video and Data streams throughout the network.

PRISM provides 10GE support for ST 2022-6, ST 2022-7 and ST 2110 as standard with simple software upgrade to 25GE connectivity. Straightforward monitoring of IP streams with measurement applications to help characterize network performance and troubleshoot issues.

Learn more

Broadcast Monitoring across the network

See the bigger picture of what is happening across the whole of the network 24/7 and respond to issues quickly and decisively. PRISM and the Telestream Inspect 2110 probe work in conjunction to provide large scale monitoring by exception, network visibility and deep content and stream diagnostics at the click of a button. The complete Engineering and Operations solution all from one company that can grow as your network grows.

Learn more about Inspect 2110

Live Production

Live production is a high pressure environment for Video Shaders and the Engineer in Charge. They need the right tools to help them setup the OB Truck quickly and reliably. Once the event starts the Shaders need easy to use instruments and easy to understand displays to allow them to make camera adjustment decisions quickly and accurately regardless of whether it is an HDR or an SDR production.

Customizable UI’s, managed presets and specialist tools for exposure and color makes PRISM the ideal tool for this environment. Manage exposure multiple ways using the waveform, false color picture display, Stop display and Lightmeters. Manage color using the vector display, diamond display, CIE chart, and false color picture display for gamut. With MULTI options users can monitor up to four SDI inputs simultaneously to make comparisons of multiple cameras or compare SDR to HDR content.

All the tools that the Shading team would expect and more.

Post Production

Quickly delivering high-quality content is critical to success as a Post Production professional. Editors and colorists need trusted, easy-to-use, tools to help accurately adjust exposure levels, manage looks, match color and exposure between scenes, and much more.

PRISM provides an array of both unique and traditional tools to manage exposure and color. These include Stop displays for easily measuring signal levels on the same scale you manage light levels; CIE charts with easy-to-read Rec.709, DCI P3, and Rec.2020 limit indicators; customizable false color image overlays to easily identify exposure and color gamut anomalies; and colored RGB Parade display, and traditional waveform and vector displays. These tools are wrapped in a proven UI, with usability features like a large floating timecode display and easy-to-read AFD / safe area / center graticules, that can be personalized to let you work the way your team and workflows need it to work.

For applications beyond the needs of broadcast television, PRISM supports DCI 2048x1080, 4096x2160 4K sources. The growing list of formats includes 10 or 12bit RGB via SDI at frame rates of 23, 24, 25, 29, and 30p; and 10bit YCbCr via ST 2110-20 at 23, 24, 25, 29, 30, 50, 59, and 60p, among others.

The PRISM preset system; event log; and audio, video, and data toolsets make technical QC and mastering a structured and repeatable process. Get it done right, first time, every time.

Camera Shading

In the fast-paced production of live sports and events, operators need to make quick adjustment of camera controls. This is done to produce a consistent look across the multiple cameras at the event. Changing lighting conditions and various camera angles within a live production can make it challenging.

The PRISM CAM app allows for operators to monitor up to four SDI inputs simultaneously and view waveforms in Y or RGB or YRGB across all the selected inputs, with the ability to show thumbnail pictures and format labels to help identify each signal. By parading the multiple inputs in one display, the operator can easily compare the video levels of each camera and make adjustment to ensure each camera is matched.

The CAM display is available as part of the MULTI option within PRISM.

Learn more

Regulatory Compliance

Broadcasters are responsible for ensuring that their content meets regulatory compliance requirements. PRISM provides a complete toolset for Technical QC and compliance checking.

Closed Captions support for CEA-608/708 ARIB STD-B37 and World Standard Teletext (WST) with decode of subtitle pages using OP47/ST2031 Ancillary data SCTE104 data can be monitored in ANC Session and logged in Event Log. Adjust Test level and Program peak level in Audio bar display to monitor audio level with facility standard.

Loudness monitoring that supports EBU R128:2014, ATSC A/85:2013 and BS.1770-2.

Gamut monitoring that supports EBU R103-3 (2020).

Learn more
